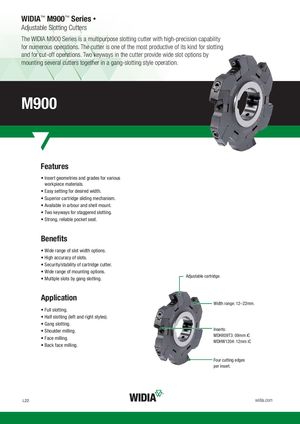

WIDIA™ M900™ Series

Adjustable Slotting Cutters

The WIDIA M900 Series is a multipurpose slotting cutter with high-precision capability

for numerous operations. The cutter is one of the most productive of its kind for slotting

and for cut-off operations. Two keyways in the cutter provide wide slot options by

mounting several cutters together in a gang-slotting style operation.

M900

Features

• Insert geometries and grades for various workpiece materials.
• Easy setting for desired width.
• Superior cartridge sliding mechanism.
• Available in arbour and shell mount.
• Two keyways for staggered slotting.
• Strong, reliable pocket seat.

Benefi ts

• Wide range of slot width options.
• High accuracy of slots.
• Security/stability of cartridge cutter.
• Wide range of mounting options.
• Multiple slots by gang slotting.

Application

• Full slotting.
• Half slotting (left and right styles).
• Gang slotting.
• Shoulder milling.
• Face milling.
• Back face milling.

Adjustable cartridge.

Width range: 12–22mm.

Inserts: MDHX09T3: 09mm iC MDHW1204: 12mm iC

Four cutting edges per insert.
