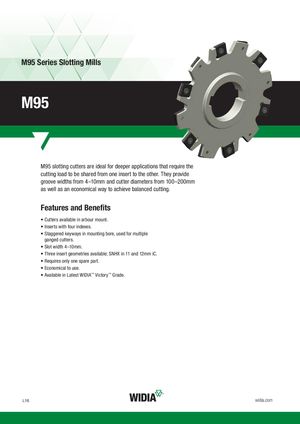

M95 Series Slotting Mills
M95
M95 slotting cutters are ideal for deeper applications that require the
cutting load to be shared from one insert to the other. They provide
groove widths from 4–10mm and cutter diameters from 100–200mm
as well as an economical way to achieve balanced cutting.
Features and Benefits
• Cutters available in arbour mount.
• Inserts with four indexes.
• Staggered keyways in mounting bore, used for multiple
ganged cutters.
• Slot width 4–10mm.
• Three insert geometries available; SNHX in 11 and 12mm iC.
• Requires only one spare part.
• Economical to use.
• Available in Latest WIDIA™ Victory™ Grade.
L16 widia.com
LWID_Master16_IndexableMIlling_SlottingCutters_L016_L017_Metric_REBRAND.indd
V i WID M 16 I d bl MIlli Sl i C L016 16
L017 M i REBRANDN b 10 20153 26PM 11/11/15 9:33 AM
M95
M95 slotting cutters are ideal for deeper applications that require the
cutting load to be shared from one insert to the other. They provide
groove widths from 4–10mm and cutter diameters from 100–200mm
as well as an economical way to achieve balanced cutting.
Features and Benefits
• Cutters available in arbour mount.
• Inserts with four indexes.
• Staggered keyways in mounting bore, used for multiple
ganged cutters.
• Slot width 4–10mm.
• Three insert geometries available; SNHX in 11 and 12mm iC.
• Requires only one spare part.
• Economical to use.
• Available in Latest WIDIA™ Victory™ Grade.
L16 widia.com
