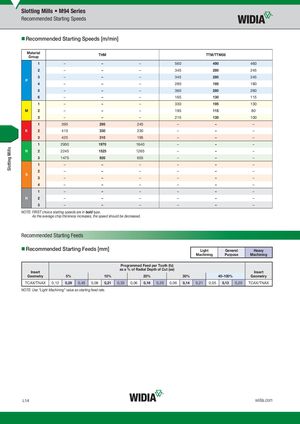

- Recommended Starting Speeds [m/min]
Material THM TTM/TTM08 Group
| 1 | – | – | – | 560 | 490 | 460 |
| 2 | – | – | – | 345 | 280 | 245 |
| 3 | – | – | – | 345 | 280 | 245 |
P
| 4 | – | – | – | 280 | 195 | 180 | |
| 5 | – | – | – | 360 | 280 | 260 | |
| 6 | – | – | – | 165 | 130 | 115 | |
| 1 | – | – | – | 330 | 195 | 130 | |
| M | 2 | – | – | – | 195 | 115 | 80 |
| 3 | – | – | – | 215 | 130 | 100 | |
| 1 | 395 | 295 | 245 | – | – | – | |
| K | 2 | 410 | 330 | 230 | – | – | – |
| 3 | 425 | 310 | 195 | – | – | – | |
| 1 | 2950 | 1970 | 1640 | – | – | – | |
| N | 2 | 2245 | 1525 | 1265 | – | – | – |
| 3 | 1475 | 920 | 655 | – | – | – | |
| 1 | – | – | – | – | – | – | |
| 2 | – | – | – | – | – | – |
S
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 1 | – | – | – | – | – | – | |
| H | 2 | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
| Geometry | 5% | 10% | 20% | 30% | 40–100% | Geometry | ||||||||||
| TCAX/TNAX | 0,12 | 0,29 | 0,45 | 0,08 | 0,21 | 0,33 | 0,06 | 0,16 | 0,25 | 0,06 | 0,14 | 0,21 | 0,05 | 0,13 | 0,20 | TCAX/TNAX |
NOTE: Use “Light Machining” value as starting feed rate.
LWID_Master16_IndexableMilling_SlottingCutters_L014_L015_Metric_REBRAND.indd 14ViWID M16 I dbl MilliSliCL014 L015 M i REBRANDN b 3 20159 26AM 11/3/15 9:33 AM
