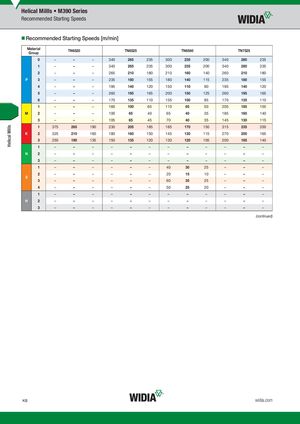

| Material Group | TN6520 | TN6525 | TN6540 | TN7525 | ||||||||
| 0 | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | 340 | 260 | 235 |
| 1 | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | 340 | 260 | 235 |
| 2 | – | – | – | 265 | 210 | 180 | 210 | 160 | 140 | 260 | 210 | 180 |
| P 3 | – | – | – | 235 | 180 | 155 | 180 | 140 | 115 | 235 | 180 | 155 |
| 4 | – | – | – | 195 | 140 | 120 | 150 | 110 | 90 | 195 | 140 | 120 |
| 5 | – | – | – | 260 | 195 | 165 | 200 | 150 | 125 | 260 | 195 | 165 |
| 6 | – | – | – | 170 | 135 | 110 | 135 | 100 | 85 | 170 | 135 | 110 |
| 1 | – | – | – | 160 | 100 | 65 | 110 | 65 | 50 | 205 | 185 | 155 |
| M 2 | – | – | – | 100 | 65 | 40 | 65 | 40 | 35 | 185 | 160 | 140 |
| 3 | – | – | – | 105 | 65 | 45 | 70 | 40 | 35 | 145 | 130 | 115 |
| 1 | 375 | 265 | 190 | 230 | 205 | 185 | 185 | 170 | 150 | 315 | 235 | 200 |
| K 2 | 325 | 210 | 160 | 180 | 160 | 150 | 145 | 130 | 115 | 270 | 200 | 165 |
| 3 | 250 | 190 | 135 | 150 | 135 | 120 | 130 | 120 | 105 | 200 | 165 | 140 |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | 40 | 30 | 25 | – | – | – |
| 2 | – | – | – | – | – | – | 20 | 15 | 10 | – | – | – |
| S 3 | – | – | – | – | – | – | 60 | 35 | 25 | – | – | – |
| 4 | – | – | – | – | – | – | 50 | 25 | 20 | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| H 2 3 | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – | – – |
(continued)
