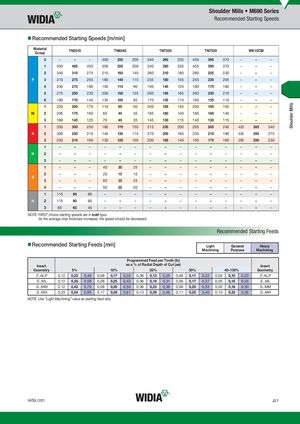

Общий каталог Widia 2017 - страница 859
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
- Recommended Starting Speeds [m/min] Material
TN2510 TN6540 TN7525 TN7535 WK15CM
Group
| 0 | – | – | – | 300 | 235 | 200 | 340 | 260 | 235 | 455 | 395 | 370 | – | – | – | |
| 1 | 550 | 485 | 450 | 300 | 235 | 200 | 340 | 260 | 235 | 455 | 395 | 370 | – | – | – | |
| 2 | 340 | 310 | 275 | 210 | 160 | 140 | 260 | 210 | 180 | 280 | 255 | 230 | – | – | – | |
| P | 3 | 310 | 275 | 255 | 180 | 140 | 115 | 235 | 180 | 155 | 255 | 230 | 205 | – | – | – |
| 4 | 230 | 215 | 190 | 150 | 110 | 90 | 195 | 140 | 120 | 190 | 175 | 160 | – | – | – | |
| 5 | 275 | 250 | 230 | 200 | 150 | 125 | 260 | 195 | 165 | 260 | 230 | 210 | – | – | – | |
| 6 | 190 | 170 | 145 | 135 | 100 | 85 | 170 | 135 | 110 | 160 | 135 | 110 | – | – | – | |
| 1 | 225 | 200 | 175 | 110 | 65 | 50 | 205 | 185 | 155 | 205 | 185 | 155 | – | – | – | |
| M | 2 | 205 | 175 | 160 | 65 | 40 | 35 | 185 | 160 | 140 | 185 | 160 | 140 | – | – | – |
| 3 | 160 | 145 | 125 | 70 | 40 | 35 | 145 | 130 | 115 | 145 | 130 | 115 | – | – | – | |
| 1 | 350 | 300 | 250 | 185 | 170 | 150 | 315 | 235 | 200 | 295 | 265 | 240 | 420 | 385 | 340 | |
| K | 2 | 300 | 250 | 210 | 145 | 130 | 115 | 270 | 200 | 165 | 235 | 210 | 190 | 335 | 295 | 275 |
| 3 | 250 | 210 | 165 | 130 | 120 | 105 | 200 | 165 | 140 | 195 | 175 | 160 | 280 | 250 | 230 | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | – | – | – | 40 | 30 | 25 | – | – | – | – | – | – | – | – | – | |
| 2 | – | – | – | 20 | 15 | 10 | – | – | – | – | – | – | – | – | – |
S
| 3 | – | – | – | 60 | 35 | 25 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | 50 | 25 | 20 | – | – | – | – | – | – | – | – | – | |
| 1 | 115 | 90 | 60 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | 115 | 90 | 60 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 85 | 65 | 45 | – | – | – | – | – | – | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Programmed Feed per Tooth (fz) as a % of Radial Depth of Cut (ae) Insert Insert
| Geometry | 5% | 10% | 20% | 30% | 40–100% | Geometry | ||||||||||
| .F..ALP | 0,12 | 0,23 | 0,46 | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | .F..ALP |
| .E..ML | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,17 | 0,27 | 0,05 | 0,15 | 0,25 | .E..ML |
| .S..MM | 0,12 | 0,42 | 0,70 | 0,08 | 0,30 | 0,50 | 0,06 | 0,23 | 0,38 | 0,06 | 0,20 | 0,33 | 0,05 | 0,18 | 0,30 | .S..MM |
| .S..MH | 0,23 | 0,54 | 0,85 | 0,17 | 0,39 | 0,61 | 0,13 | 0,29 | 0,46 | 0,11 | 0,25 | 0,40 | 0,10 | 0,23 | 0,36 | .S..MH |
NOTE: Use “Light Machining” value as starting feed rate.
