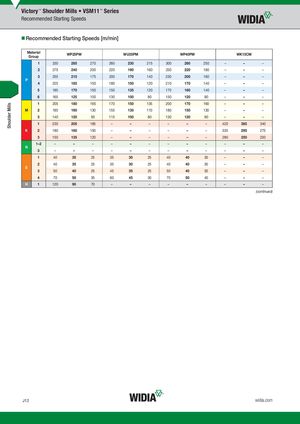

Recommended Starting Speeds [m/min]
Material
WP25PM WU35PM WP40PM WK15CM
Group
| 1 | 330 | 285 | 270 | 260 | 230 | 215 | 300 | 260 | 250 | – | – | – |
| 2 | 275 | 240 | 200 | 220 | 190 | 160 | 250 | 220 | 180 | – | – | – |
| 3 | 255 | 215 | 175 | 200 | 170 | 140 | 230 | 200 | 160 | – | – | – |
P
| 4 | 225 | 185 | 150 | 180 | 150 | 120 | 210 | 170 | 140 | – | – | – | |
| 5 | 185 | 170 | 150 | 150 | 135 | 120 | 170 | 160 | 140 | – | – | – | |
| 6 | 165 | 125 | 100 | 130 | 100 | 80 | 150 | 120 | 90 | – | – | – | |
| 1 | 205 | 180 | 165 | 170 | 150 | 135 | 200 | 170 | 160 | – | – | – | |
| M | 2 | 185 | 160 | 130 | 155 | 130 | 110 | 180 | 150 | 130 | – | – | – |
| 3 | 140 | 120 | 95 | 115 | 100 | 80 | 130 | 120 | 90 | – | – | – | |
| 1 | 230 | 205 | 185 | – | – | – | – | – | – | 420 | 385 | 340 | |
| K | 2 | 180 | 160 | 150 | – | – | – | – | – | – | 335 | 295 | 275 |
| 3 | 150 | 135 | 120 | – | – | – | – | – | – | 280 | 250 | 230 | |
| 1–2 | – | – | – | – | – | – | – | – | – | – | – | – |
N
| 3 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | 40 | 35 | 25 | 35 | 30 | 25 | 40 | 40 | 30 | – | – | – |
| 2 | 40 | 35 | 25 | 35 | 30 | 25 | 40 | 40 | 30 | – | – | – |
S
| 3 | 50 | 40 | 25 | 45 | 35 | 25 | 50 | 40 | 30 | – | – | – | |
| 4 | 70 | 50 | 35 | 60 | 45 | 30 | 70 | 50 | 40 | – | – | – | |
| H | 1 | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – |
(continued)
