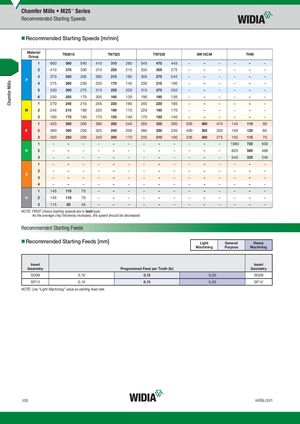

- Material Overview • DIN
- Recommended Starting Speeds [m/min]
Material
TN2510 TN7525 TN7535 WK15CM THM
Group
| 1 | 660 | 580 | 540 | 410 | 310 | 280 | 545 | 475 | 445 | – | – | – | – | – | – |
| 2 | 410 | 370 | 330 | 310 | 250 | 215 | 335 | 305 | 275 | – | – | – | – | – | – |
| 3 | 370 | 330 | 305 | 280 | 215 | 185 | 305 | 275 | 245 | – | – | – | – | – | – |
P
| 4 | 275 | 260 | 230 | 235 | 170 | 145 | 230 | 210 | 190 | – | – | – | – | – | – | |
| 5 | 330 | 300 | 275 | 310 | 235 | 200 | 310 | 275 | 250 | – | – | – | – | – | – | |
| 6 | 230 | 205 | 175 | 205 | 160 | 130 | 190 | 160 | 130 | – | – | – | – | – | – | |
| 1 | 270 | 240 | 210 | 245 | 220 | 185 | 245 | 220 | 185 | – | – | – | – | – | – | |
| M | 2 | 245 | 210 | 190 | 220 | 190 | 170 | 220 | 190 | 170 | – | – | – | – | – | – |
| 3 | 190 | 175 | 150 | 175 | 155 | 140 | 175 | 155 | 140 | – | – | – | – | – | – | |
| 1 | 420 | 360 | 300 | 380 | 280 | 240 | 355 | 320 | 290 | 505 | 460 | 410 | 145 | 110 | 90 | |
| K | 2 | 360 | 300 | 250 | 325 | 240 | 200 | 280 | 250 | 230 | 400 | 355 | 330 | 150 | 120 | 85 |
| 3 | 300 | 250 | 200 | 240 | 200 | 170 | 235 | 210 | 190 | 335 | 300 | 275 | 155 | 115 | 70 | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | 1080 | 720 | 600 | |
| N | 2 | – | – | – | – | – | – | – | – | – | – | – | – | 820 | 560 | 460 |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 540 | 335 | 240 | |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
S
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 1 | 145 | 110 | 70 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 2 | 145 | 110 | 70 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 115 | 80 | 45 | – | – | – | – | – | – | – | – | – | – | – | – |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased.
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
Insert Insert
| Geometry | Programmed Feed per Tooth (fz) | Geometry | |||
| SD09 | 0,10 | 0,15 | 0,30 | SD09 | |
| SP12 | 0,10 | 0,15 | 0,35 | SP12 |
NOTE: Use “Light Machining” value as starting feed rate.
