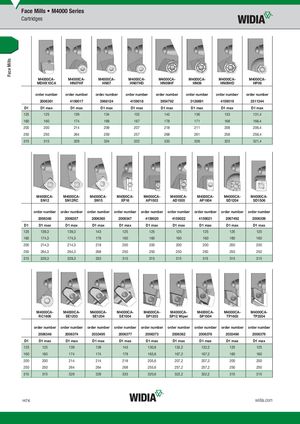

| M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | |||||||||
| MDHX10CA | HN07HF | HN07 | HN07HD | HN09HF | HN09 | HN09HD | HP06 | |||||||||
| order number | order number | order number | order number | order number | order number | order number | order number | |||||||||
| 2006361 | 4159017 | 3968124 | 4159018 | 3954792 | 3126691 | 4159019 | 2511344 | |||||||||
| D1 | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max |
| 125 | 125 | 139 | 134 | 132 | 143 | 136 | 133 | 131,4 |
| 160 | 160 | 174 | 169 | 167 | 178 | 171 | 168 | 166,4 |
| 200 | 200 | 214 | 209 | 207 | 218 | 211 | 208 | 206,4 |
| 250 | 250 | 264 | 259 | 257 | 268 | 261 | 258 | 256,4 |
| 315 | 315 | 329 | 324 | 322 | 333 | 326 | 323 | 321,4 |
| M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | ||||||||||
| SN12 | SN12RC | SN15 | XP16 | AP1003 | AD1505 | AP1604 | SD1204 | SD1506 | ||||||||||
| order number | order number | order number | order number | order number | order number | order number | order number | order number | ||||||||||
| 2006348 | 2006357 | 2006360 | 2006347 | 4159020 | 4159022 | 4159021 | 2067492 | 2006359 | ||||||||||
| D1 | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max |
| 125 | 139,3 | 139,3 | 143 | 125 | 125 | 125 | 125 | 125 | 125 |
| 160 | 174,3 | 174,3 | 178 | 160 | 160 | 160 | 160 | 160 | 160 |
| 200 | 214,3 | 214,3 | 218 | 200 | 200 | 200 | 200 | 200 | 200 |
| 250 | 264,3 | 264,3 | 268 | 250 | 250 | 250 | 250 | 250 | 250 |
| 315 | 329,3 | 329,3 | 333 | 315 | 315 | 315 | 315 | 315 | 315 |
| M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | M4000CA- | ||||||||||
| RC1606 | SE1203 | SE1204 | SE1504 | SP1203 | SP12 Wiper | SP1504 | TP1603 | TP2204 | ||||||||||
| order number | order number | order number | order number | order number | order number | order number | order number | order number | ||||||||||
| 2006346 | 2006374 | 2033495 | 2006377 | 2006373 | 2006362 | 2006376 | 2033496 | 2006379 | ||||||||||
| D1 | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max | D1 max |
| 125 | 125 | 139 | 139 | 143 | 130,6 | 132,2 | 132,2 | 125 | 125 |
| 160 | 160 | 174 | 174 | 178 | 165,6 | 167,2 | 167,2 | 160 | 160 |
| 200 | 200 | 214 | 214 | 218 | 205,6 | 207,2 | 207,2 | 200 | 200 |
| 250 | 250 | 264 | 264 | 268 | 255,6 | 257,2 | 257,2 | 250 | 250 |
| 315 | 315 | 329 | 329 | 333 | 320,6 | 322,2 | 322,2 | 315 | 315 |
