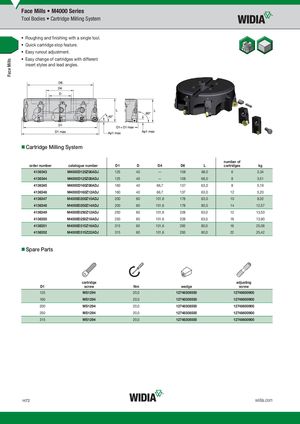

Tool Bodies Cartridge Milling System
- Roughing and finishing with a single tool.
- Quick cartridge stop feature.
- Easy runout adjustment.
- Easy change of cartridges with different insert styles and lead angles.
- Cartridge Milling System
number of
| order number | catalogue number | D1 | D | D4 | D6 | L | cartridges | kg |
| 4136343 | M4000D125Z06ADJ | 125 | 40 | — | 108 | 68,0 | 6 | 3,34 |
| 4136344 | M4000D125Z08ADJ | 125 | 40 | — | 108 | 68,0 | 8 | 3,51 |
| 4136345 | M4000D160Z08ADJ | 160 | 40 | 66,7 | 137 | 63,0 | 8 | 5,19 |
| 4136346 | M4000D160Z12ADJ | 160 | 40 | 66,7 | 137 | 63,0 | 12 | 5,20 |
| 4136347 | M4000D200Z10ADJ | 200 | 60 | 101,6 | 178 | 63,0 | 10 | 8,02 |
| 4136348 | M4000D200Z14ADJ | 200 | 60 | 101,6 | 178 | 80,0 | 14 | 12,57 |
| 4136349 | M4000D250Z12ADJ | 250 | 60 | 101,6 | 228 | 63,0 | 12 | 13,53 |
| 4136350 | M4000D250Z18ADJ | 250 | 60 | 101,6 | 228 | 63,0 | 18 | 13,90 |
| 4136351 | M4000D315Z16ADJ | 315 | 60 | 101,6 | 293 | 80,0 | 16 | 25,08 |
| 4136352 | M4000D315Z22ADJ | 315 | 60 | 101,6 | 293 | 80,0 | 22 | 25,42 |
- Spare Parts
cartridge adjusting
| D1 | screw | Nm | screw wedge | |
| 125 | MS1294 | 20,0 | 12748308500 | 12748600900 |
| 160 | MS1294 | 20,0 | 12748308500 | 12748600900 |
| 200 | MS1294 | 20,0 | 12748308500 | 12748600900 |
| 250 | MS1294 | 20,0 | 12748308500 | 12748600900 |
| 315 | MS1294 | 20,0 | 12748308500 | 12748600900 |
