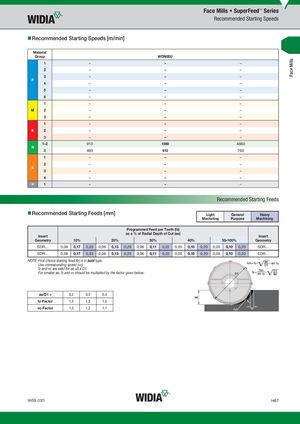

- Recommended Starting Speeds [m/min]
| Mat | erial | |||
| Gr | oup | WDN00U | ||
| 1 | – | – | – | |
| 2 | – | – | – | |
| P | 3 | – | – | – |
| 4 | – | – | – | |
| 5 | – | – | – | |
| 6 | – | – | – | |
| 1 | – | – | – | |
| M | 2 | – | – | – |
| 3 | – | – | – | |
| 1 | – | – | – | |
| K | 2 | – | – | – |
| 3 | – | – | – | |
| 1–2 | 910 | 1980 | 4880 | |
| N | 3 | 460 | 610 | 760 |
| 1 | – | – | – | |
| 2 | – | – | – | |
| S | 3 | – | – | – |
| 4 | – | – | – | |
| H | 1 | – | – | – |
Recommended Starting Feeds
- Recommended Starting Feeds [mm]
| Light | General | Heavy | |
| Machining | Purpose | Machining |
| ecomme Insert Geometry | ne | tart 10% | g ee | s [ | m] 20% | Prog as a | ramme % of Ra | dFeedp dial Dep 30% | er Toot th of Cu | h (fz) t (ae) | 40% | Li Mach | ght ining | 50–100% Ge Pu | neral rpose | Insert Geometry Heavy Machining |
| SDR… | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | 0,05 | 0,10 | 0,20 | SDR… |
| EDR… | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | 0,05 | 0,10 | 0,20 | EDR… |
fz and vc are valid for ae *0,4 D1. For smaller ae, fz and vc should be multiplied by the factor given below:
| ae/D1 = | 0,2 | 0,3 | 0,4 |
| fz-Factor | 1,5 | 1,3 | 1,0 |
| ae/D1 = | 0,2 | 0,3 | 0,4 |
| fz-Factor | 1,5 | 1,3 | 1,0 |
| vc-Factor | 1,3 | 1,2 | 1,1 |
