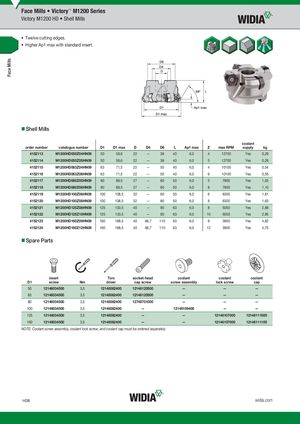

Victory M1200 HD Shell Mills
- Twelve cutting edges.
- Higher Ap1 max with standard insert.
- Shell Mills
| order number | catalogue number | D1 | D1 max | D | D4 | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 4152113 | M1200HD050Z04HN09 | 50 | 58,6 | 22 | — | 38 | 40 | 6,0 | 4 | 12700 | Yes | 0,29 |
| 4152114 | M1200HD050Z05HN09 | 50 | 58,6 | 22 | — | 38 | 40 | 6,0 | 5 | 12700 | Yes | 0,28 |
| 4152115 | M1200HD063Z04HN09 | 63 | 71,5 | 22 | — | 50 | 40 | 6,0 | 4 | 10100 | Yes | 0,54 |
| 4152116 | M1200HD063Z06HN09 | 63 | 71,5 | 22 | — | 50 | 40 | 6,0 | 6 | 10100 | Yes | 0,55 |
| 4152117 | M1200HD080Z05HN09 | 80 | 88,5 | 27 | — | 60 | 50 | 6,0 | 5 | 7900 | Yes | 1,05 |
| 4152118 | M1200HD080Z08HN09 | 80 | 88,5 | 27 | — | 60 | 50 | 6,0 | 8 | 7900 | Yes | 1,10 |
| 4152119 | M1200HD100Z06HN09 | 100 | 108,5 | 32 | — | 80 | 50 | 6,0 | 6 | 6300 | Yes | 1,61 |
| 4152120 | M1200HD100Z08HN09 | 100 | 108,5 | 32 | — | 80 | 50 | 6,0 | 8 | 6300 | Yes | 1,63 |
| 4152121 | M1200HD125Z08HN09 | 125 | 133,5 | 40 | — | 90 | 63 | 6,0 | 8 | 5050 | Yes | 2,88 |
| 4152122 | M1200HD125Z10HN09 | 125 | 133,5 | 40 | — | 90 | 63 | 6,0 | 10 | 5050 | Yes | 2,85 |
| 4152123 | M1200HD160Z09HN09 | 160 | 168,5 | 40 | 66,7 | 110 | 63 | 6,0 | 9 | 3900 | Yes | 4,62 |
| 4152124 | M1200HD160Z12HN09 | 160 | 168,5 | 40 | 66,7 | 110 | 63 | 6,0 | 12 | 3900 | Yes | 4,75 |
- Spare Parts
| insert | Torx | socket-head | coolant | coolant | coolant | |||
| D1 | screw | Nm | driver | cap screw | screw assembly | lock screw | cap |
50 12146034500 3,5 12148082400 12146120500 — — —
| D1 | insert screw | Nm | Torx driver | socket-head cap screw | coolant screw assembly | coolant lock screw | coolant cap |
| 50 | 12146034500 | 3,5 | 12148082400 | 12146120500 | — | — | — |
| 63 | 12146034500 | 3,5 | 12148082400 | 12146120500 | — | — | — |
| 80 | 12146034500 | 3,5 | 12148082400 | 12748701000 | — | — | — |
| 100 | 12146034500 | 3,5 | 12148082400 | — | 12146109400 | — | — |
| 125 | 12146034500 | 3,5 | 12148082400 | — | — | 12146107000 | 12146111000 |
| 160 | 12146034500 | 3,5 | 12148082400 | — | — | 12146107000 | 12146111100 |
