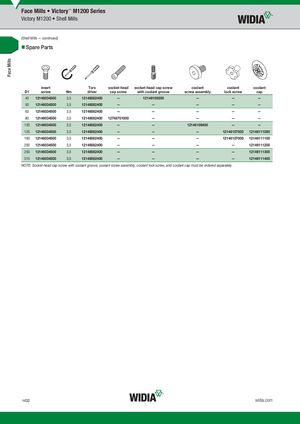

Victory M1200 • Shell Mills
(Shell Mills — continued)
Spare Parts
| D1 | insert screw | Nm | Torx driver | socket-head cap screw | socket-head cap screw with coolantgroove | coolant screw assembly | coolant lock screw | coolant cap |
| 40 | 12146034500 | 3,5 | 12148082400 | — | 12146109200 | — | — | — |
| 50 | 12146034500 | 3,5 | 12148082400 | — | — | — | — | — |
| 63 | 12146034500 | 3,5 | 12148082400 | — | — | — | — | — |
| 80 | 12146034500 | 3,5 | 12148082400 | 12748701000 | — | — | — | — |
| 100 | 12146034500 | 3,5 | 12148082400 | — | — | 12146109400 | — | — |
| 125 | 12146034500 | 3,5 | 12148082400 | — | — | — | 12146107000 | 12146111000 |
| 160 | 12146034500 | 3,5 | 12148082400 | — | — | — | 12146107000 | 12146111100 |
| 200 | 12146034500 | 3,5 | 12148082400 | — | — | — | — | 12146111200 |
| 250 | 12146034500 | 3,5 | 12148082400 | — | — | — | — | 12146111300 |
| 315 | 12146034500 | 3,5 | 12148082400 | — | — | — | — | 12146111400 |
NOTE: Socket-head cap screw with coolant groove, coolant screw assembly, coolant lock screw, and coolant cap must be ordered separately.
