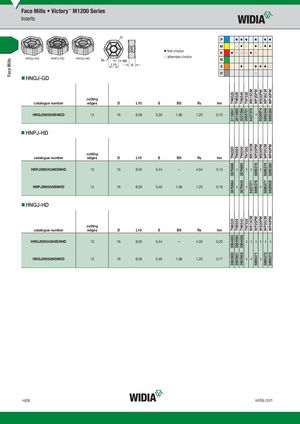

Общий каталог Widia 2017 - страница 748
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
first choice alternate choice
HNGJ-GD HNPJ-HD HNGJ-HD
- HNGJ-GD
P M K N S H
cutting
| catalogue number | edges | D | L10 | S | BS | R¡ | hm |
| HNGJ0905ANSNGD | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
- HNPJ-HD
cutting
| catalogue number | edges | D | L10 | S | BS | R¡ | hm |
| HNPJ090543ANSNHD | 12 | 16 | 8,50 | 5,44 | — | 4,34 | 0,13 |
HNPJ0905ANSNHD 12 16 8,59 5,46 1,66 1,20 0,18
- HNGJ-HD
cutting
| catalogue number | edges | D | L10 | S | BS | R¡ | hm |
| HNGJ090543ANSNHD | 12 | 16 | 8,50 | 5,44 | — | 4,35 | 0,20 |
HNGJ0905ANSNHD 12 16 8,59 5,46 1,66 1,20 0,17
