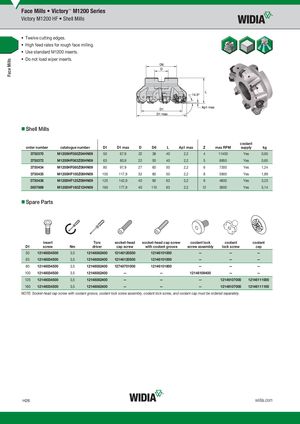

Общий каталог Widia 2017 - страница 746
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
Victory M1200 HF Shell Mills
- Twelve cutting edges.
- High feed rates for rough face milling.
- Use standard M1200 inserts.
- Do not load wiper inserts.
- Shell Mills
| order number | catalogue number | D1 | D1 max | D | D6 | L | Ap1 max | Z | max RPM | coolant supply | kg |
| 3750370 | M1200HF050Z04HN09 | 50 | 67,9 | 22 | 38 | 40 | 2,2 | 4 | 11400 | Yes | 0,65 |
| 3750372 | M1200HF063Z05HN09 | 63 | 80,9 | 22 | 50 | 40 | 2,2 | 5 | 8950 | Yes | 0,65 |
| 3750434 | M1200HF080Z06HN09 | 80 | 97,9 | 27 | 60 | 50 | 2,2 | 6 | 7300 | Yes | 1,24 |
| 3750435 | M1200HF100Z08HN09 | 100 | 117,9 | 32 | 80 | 50 | 2,2 | 8 | 5900 | Yes | 1,89 |
| 3750436 | M1200HF125Z09HN09 | 125 | 142,9 | 40 | 90 | 63 | 2,2 | 9 | 4800 | Yes | 3,23 |
| 3957969 | M1200HF160Z12HN09 | 160 | 177,9 | 40 | 110 | 63 | 2,2 | 12 | 3900 | Yes | 5,14 |
- Spare Parts
| insert | Torx | socket-head | socket-head cap screw | coolant lock | coolant | coolant | ||
| D1 | screw | Nm | driver | cap screw | with coolant groove | screw assembly | lock screw | cap |
| D1 | insert screw | Nm | Torx driver | socket-head cap screw | socket-head cap screw with coolantgroove | coolant lock screw assembly | coolant lock screw | coolant cap |
| 50 | 12146034500 | 3,5 | 12148082400 | 12146120500 | 12146101000 | — | — | — |
| 63 | 12146034500 | 3,5 | 12148082400 | 12146120500 | 12146101000 | — | — | — |
| 80 | 12146034500 | 3,5 | 12148082400 | 12748701000 | 12146101800 | — | — | — |
| 100 | 12146034500 | 3,5 | 12148082400 | — | — | 12146109400 | — | — |
| 125 | 12146034500 | 3,5 | 12148082400 | — | — | — | 12146107000 | 12146111000 |
| 160 | 12146034500 | 3,5 | 12148082400 | — | — | — | 12146107000 | 12146111100 |
