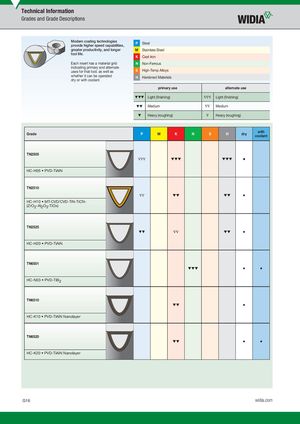

Modern coating technologies provide higher speed capabilities, greater productivity, and longer tool life. Each insert has a material grid indicating primary and alternate uses for that tool, as well as whether it can be operated dry or with coolant.
P Steel M Stainless Steel K Cast Iron N Non-Ferrous S High-Temp Alloys H Hardened Materials
primary use alternate use
| WWW | Light (fi nishing) | ¢¢¢ | Light (fi nishing) |
| WW | Medium | ¢¢ | Medium |
| W | Heavy (roughing) | ¢ | Heavy (roughing) |
with
Grade P M K N S H dry
coolant
TN2505
¢¢¢ WWW WWW •
HC-H05 • PVD-TiAlN
TN2510
¢¢ WW WW •
HC-H10 • MT-CVD/CVD-TiN-TiCN- (ZrO2-Al2O3-TiOx)
TN2525
WW ¢¢ WW •
HC-H20 • PVD-TiAlN
TN6501
WWW • •
HC-N03 • PVD-TiB2
TN6510 WW •
HC-K10 • PVD-TiAlN Nanolayer
TN6520
WW • •
HC-K20 • PVD-TiAlN Nanolayer
