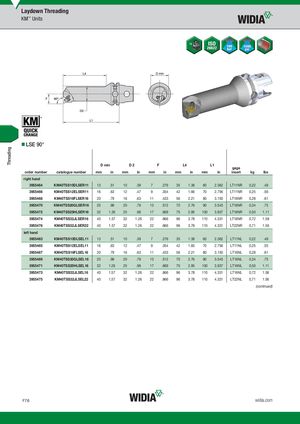

LSE 90°
D min D2 F L4 L1
| D m | in | D | 2 | F | L | 4 | L | 1 | gage | |||||
| order number | catalogue number | mm | in | mm | in | mm | in | mm | in | mm | in | insert | kg | lbs |
| right hand | ||||||||||||||
| 3955464 | KM40TSS10DLSER11 | 13 | .51 | 10 | .39 | 7 | .276 | 35 | 1.38 | 60 | 2.362 | LT11NR | 0,22 | .49 |
| 3955466 | KM40TSS12ELSER11 | 16 | .63 | 12 | .47 | 9 | .354 | 42 | 1.66 | 70 | 2.756 | LT11NR | 0,25 | .56 |
| 3955468 | KM40TSS16FLSER16 | 20 | .79 | 16 | .63 | 11 | .433 | 56 | 2.21 | 80 | 3.150 | LT16NR | 0,28 | .61 |
| 3955470 | KM40TSS20GLSER16 | 25 | .98 | 20 | .79 | 13 | .512 | 70 | 2.76 | 90 | 3.543 | LT16NR | 0,34 | .75 |
| 3955472 | KM40TSS25HLSER16 | 32 | 1.26 | 25 | .98 | 17 | .669 | 75 | 2.95 | 100 | 3.937 | LT16NR | 0,50 | 1.11 |
| 3955474 | KM40TSS32JLSER16 | 40 | 1.57 | 32 | 1.26 | 22 | .866 | 96 | 3.78 | 110 | 4.331 | LT16NR | 0,72 | 1.58 |
| 3955476 | KM40TSS32JLSER22 | 40 | 1.57 | 32 | 1.26 | 22 | .866 | 96 | 3.78 | 110 | 4.331 | LT22NR | 0,71 | 1.56 |
| left hand | ||||||||||||||
| 3955463 | KM40TSS10DLSEL11 | 13 | .51 | 10 | .39 | 7 | .276 | 35 | 1.38 | 60 | 2.362 | LT11NL | 0,22 | .49 |
| 3955465 | KM40TSS12ELSEL11 | 16 | .63 | 12 | .47 | 9 | .354 | 42 | 1.65 | 70 | 2.756 | LT11NL | 0,25 | .55 |
| 3955467 | KM40TSS16FLSEL16 | 20 | .79 | 16 | .63 | 11 | .433 | 56 | 2.21 | 80 | 3.150 | LT16NL | 0,28 | .61 |
| 3955469 | KM40TSS20GLSEL16 | 25 | .98 | 20 | .79 | 13 | .512 | 70 | 2.76 | 90 | 3.543 | LT16NL | 0,34 | .75 |
| 3955471 | KM40TSS25HLSEL16 | 32 | 1.26 | 25 | .98 | 17 | .669 | 75 | 2.95 | 100 | 3.937 | LT16NL | 0,50 | 1.11 |
| 3955473 | KM40TSS32JLSEL16 | 40 | 1.57 | 32 | 1.26 | 22 | .866 | 96 | 3.78 | 110 | 4.331 | LT16NL | 0,72 | 1.58 |
| 3955475 | KM40TSS32JLSEL22 | 40 | 1.57 | 32 | 1.26 | 22 | .866 | 96 | 3.78 | 110 | 4.331 | LT22NL | 0,71 (c | 1.56 ontinued) |
