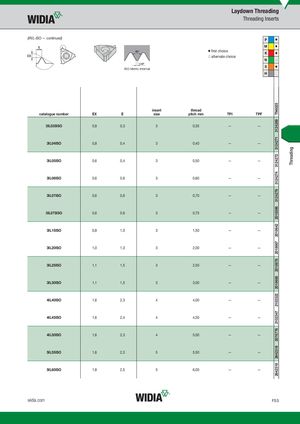

| — connue) | P � | ||||
| ISO Metric | -Internal | �first choice �alternate choice | M � K � N � S � H | ||
| catalogue number | EX E | insert size | thread pitch mm | TPI | TPF TN6025 |
| 3IL035ISO 3IL04ISO | 0,8 0,3 0,8 0,4 | 3 3 | 0,35 0,40 | — — | — 3124269 — 3124271 |
| 3IL05ISO | 0,6 0,4 | 3 | 0,50 | — | — 3124272 |
| 3IL06ISO | 0,6 0,6 | 3 | 0,60 | — | — 3124274 |
| 3IL07ISO 3IL075ISO | 0,6 0,6 0,6 0,6 | 3 3 | 0,70 0,75 | — — | — 3124276 — 2018598 |
| 3IL15ISO | 0,8 1,0 | 3 | 1,50 | — | — 2018642 |
| 3IL20ISO | 1,0 1,3 | 3 | 2,00 | — | — 2018667 |
| 3IL25ISO | 1,1 1,5 | 3 | 2,50 | — | — 2018678 |
| 3IL30ISO | 1,1 1,5 | 3 | 3,00 | — | — 2018688 |
| 4IL40ISO | 1,6 2,3 | 4 | 4,00 | — | — 2102322 |
| 4IL45ISO | 1,6 2,4 | 4 | 4,50 | — | — 2102347 |
| 4IL50ISO 5IL55ISO | 1,6 2,3 1,6 2,3 | 4 5 | 5,00 5,50 | — — | — 2076776 — 2642318 |
| 5IL60ISO | 1,8 2,5 | 5 | 6,00 | — | — 2642319 |
