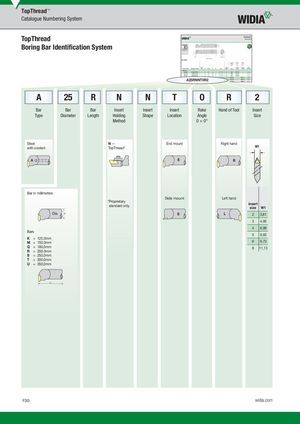

TopThread
Boring Bar Identifi cation System
A25RNNT0R2
| A | 25 | R | N | N | T | O | R | 2 | |||
| Bar | Bar | Bar | Insert | Insert | Insert | Rake | Hand of Tool | Insert | |||
| Type | Diameter | Length | Holding | Shape | Location | Angle | Size |
Method 0 = 0°
| Steel | N — | End mount | Right hand | |
| W1 | ||||
| with coolant | TopThread* |
A E R
Bar in millimetres
Dia. Dia.
Bars K = 125,0mm M = 150,0mm Q = 180,0mm R = 200,0mm S = 250,0mm T = 300,0mm U = 350,0mm
* Proprietary standard only.
Side mount
S
Left hand
L
insert
| size | W1 |
| 2 | 3,81 |
| 3 | 4,95 |
| 4 | 6,98 |
| 5 | 9,65 |
| 6 | 9,73 |
| 8 | 11,13 |
