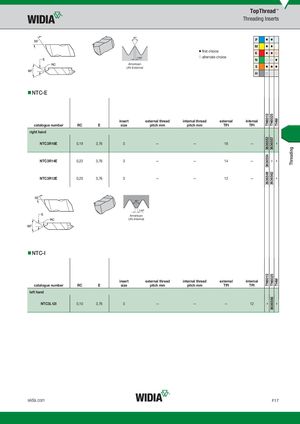

60°
1/8P American UN-External
first choice alternate choice
P M K N S H
- NTC-E
insert external thread internal thread external internal
| catalogue number | RC | E | size | pitch mm | pitch mm | TPI | TPI | ||||
| right hand | |||||||||||
| NTC3R16E | 0,19 | 3,76 | 3 | — | — | 16 | — |
NTC3R14E 0,22 3,76 3 — — 14 —
NTC3R12E 0,25 3,76 3 — — 12 —
60°
1/4P American UN-Internal
- NTC-I
insert external thread internal thread external internal
| catalogue number | RC | E | size | pitch mm | pitch mm | TPI | TPI | ||||
| left hand | |||||||||||
| NTC3L12I | 0,10 | 3,76 | 3 | — | — | — | 12 |
