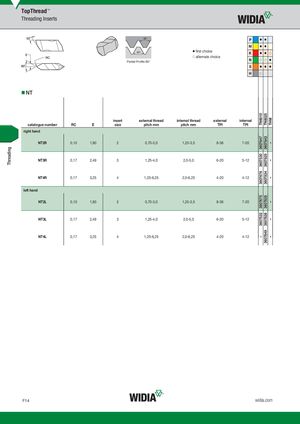

| 60° 60° Partial Profile 60° | �first cho �alternat | i ice e choice | P M K N S H | � � � � � � � � � � � � � � | ||||
| NT catalogue number | RC | E | insert size | external thread pitch mm | internal thread pitch mm | external TPI | internal TPI | TN6010 TN6025 THM |
| right hand NT2R | 0,10 | 1,90 | 2 | 0,70-3,0 | 1,25-3,5 | 8-36 | 7-20 | 3607647 3607843 – |
| NT3R | 0,17 | 2,49 | 3 | 1,25-4,0 | 2,0-5,0 | 6-20 | 5-12 | 3607530 3607825 – |
| NT4R | 0,17 | 3,25 | 4 | 1,25-6,25 | 2,0-6,25 | 4-20 | 4-12 | 3607676 3607834 – |
| left hand NT2L | 0,10 | 1,90 | 2 | 0,70-3,0 | 1,25-3,5 | 8-36 | 7-20 | 3607675 3607835 – |
| NT3L NT4L | 0,17 0,17 | 2,49 3,25 | 3 4 | 1,25-4,0 1,25-6,25 | 2,0-5,0 2,0-6,25 | 6-20 4-20 | 5-12 4-12 | 3607532 3607826 – – 3607849 – |
