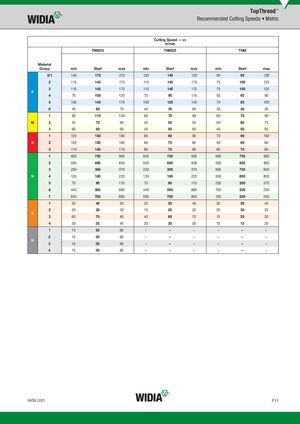

Cutting Speed — vc m/min
TN6010 TN6025 THM
Material
| Group | min | Start | max | min | Start | max | min | Start | max | |
| 0/1 | 140 | 175 | 210 | 130 | 140 | 150 | 90 | 95 | 100 | |
| 2 | 115 | 145 | 175 | 110 | 145 | 175 | 75 | 100 | 125 | |
| 3 | 115 | 145 | 175 | 110 | 145 | 175 | 75 | 100 | 125 |
P
| 4 | 75 | 100 | 120 | 75 | 95 | 115 | 55 | 65 | 80 |
| 5 | 105 | 140 | 170 | 100 | 125 | 145 | 70 | 85 | 100 |
| 6 | 45 | 60 | 75 | 40 | 55 | 65 | 30 | 40 | 45 |
| 1 | 90 | 115 | 140 | 60 | 75 | 90 | 60 | 75 | 90 |
| M 2 | 55 | 70 | 90 | 40 | 50 | 55 | 50 | 60 | 75 |
| 3 | 60 | 80 | 95 | 40 | 50 | 60 | 40 | 50 | 55 |
| 1 | 120 | 150 | 180 | 60 | 80 | 90 | 70 | 90 | 100 |
| K 2 | 120 | 150 | 180 | 60 | 75 | 85 | 50 | 65 | 80 |
| 3 | 110 | 140 | 170 | 60 | 75 | 90 | 60 | 70 | 80 |
| 1 | 600 | 750 | 900 | 600 | 750 | 900 | 600 | 750 | 900 |
| 2 | 535 | 685 | 835 | 535 | 685 | 835 | 500 | 650 | 800 |
| 3 | 230 | 300 | 370 | 230 | 300 | 370 | 600 | 750 | 900 |
| N 4 | 135 | 180 | 225 | 135 | 180 | 225 | 500 | 650 | 800 |
| 5 | 70 | 90 | 110 | 70 | 90 | 110 | 230 | 300 | 370 |
| 6 | 445 | 565 | 690 | 445 | 565 | 690 | 150 | 200 | 250 |
| 7 | 550 | 700 | 850 | 550 | 700 | 850 | 150 | 200 | 250 |
| 1 | 35 | 40 | 50 | 25 | 35 | 40 | 25 | 35 | 45 |
| 2 | 20 | 20 | 30 | 15 | 20 | 20 | 20 | 30 | 35 |
S
| 3 | 60 | 70 | 80 | 40 | 60 | 70 | 15 | 25 | 30 |
| 4 | 30 | 35 | 45 | 20 | 30 | 35 | 10 | 15 | 20 |
| 1 | 15 | 30 | 60 | – | – | – | – | – | – |
| 2 | 15 | 30 | 60 | – | – | – | – | – | – |
H
| 3 | 15 | 30 | 60 | – | – | – | – | – | – |
| 4 | 15 | 30 | 60 | – | – | – | – | – | – |
