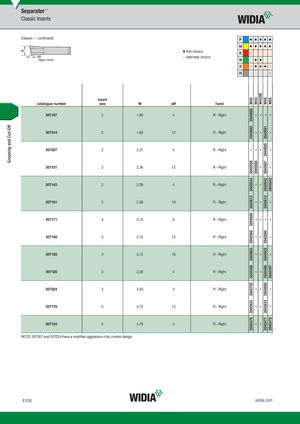

Classic Inserts
| (Classic — continued) | P � � | � � � | ||||
| Right Hand | �first c �altern | i hoice ate choice | M � � K � N � S � � H | � � � � � � � � | ||
| catalogue number | insert size | W | �R | hand | M40 M43 | M433B M45 M93 |
| 507197 | 2 | 1,60 | 4 | R - Right | 3540666 – | – – – |
| 507214 d Cut-Off | 2 | 1,60 | 12 | R - Right | 3540692 – | – 3540691 – |
| 507207 ooving an | 2 | 2,31 | 4 | R - Right | – – | – 3540685 – |
| 507151 Gr | 2 | 2,36 | 12 | R - Right | 3540589 3540585 | – 3540587 – |
| 507143 507161 | 2 2 | 2,39 2,39 | 4 18 | R - Right R - Right | 3540544 – 3540613 – | – 3540542 3540543 – 3540612 – |
| 507171 | 3 | 3,12 | 6 | R - Right | 3540628 – | – – – |
| 507146 | 3 | 3,15 | 12 | R - Right | 3540562 – | – 3540560 – |
| 507155 507128 | 3 3 | 3,15 3,20 | 18 4 | R - Right R - Right | 3540603 – 3540498 – | – 3540602 – – 3540496 3540497 |
| 507224 | 3 | 3,20 | 4 | R - Right | 3540700 – | – 3540698 – |
| 507176 | 5 | 4,72 | 12 | R - Right | 3540634 – | – 3540633 – |
| 507124 | 5 | 4,78 | 4 | R - Right | 3540479 – | – 3540477 3540478 |
