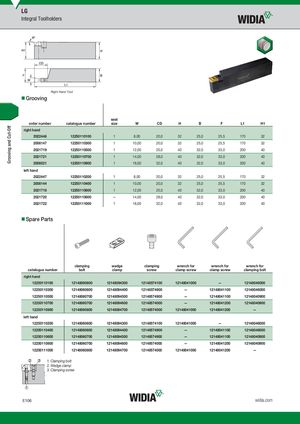

LG
Right Hand Tool
- Grooving
| order number | catalogue number | seat size | W | CD | H | B | F | L1 | H1 |
| right hand | |||||||||
| 2022446 | 12250110100 | 1 | 8,00 | 20,0 | 32 | 25,0 | 25,5 | 170 | 32 |
| 2008147 | 12250110300 | 1 | 10,00 | 20,0 | 32 | 25,0 | 25,5 | 170 | 32 |
| 2021719 | 12250110500 | 1 | 12,00 | 25,0 | 40 | 32,0 | 33,0 | 200 | 40 |
| 2021721 | 12250110700 | 1 | 14,00 | 28,0 | 40 | 32,0 | 33,0 | 200 | 40 |
| 2008521 | 12250110900 | 1 | 16,00 | 32,0 | 40 | 32,0 | 33,0 | 200 | 40 |
| left hand | |||||||||
| 2022447 | 12250110200 | 1 | 8,00 | 20,0 | 32 | 25,0 | 25,5 | 170 | 32 |
| 2008144 | 12250110400 | 1 | 10,00 | 20,0 | 32 | 25,0 | 25,5 | 170 | 32 |
| 2021718 | 12250110600 | 1 | 12,00 | 25,0 | 40 | 32,0 | 33,0 | 200 | 40 |
| 2021720 | 12250110800 | — | 14,00 | 28,0 | 40 | 32,0 | 33,0 | 200 | 40 |
| 2021722 | 12250111000 | 1 | 16,00 | 32,0 | 40 | 32,0 | 33,0 | 200 | 40 |
- Spare Parts
| clamping | wedge | clamping | wrench for | wrench for | wrench for | ||
| catalogue number | bolt | clamp | screw | clamp screw | clamp screw | clamping bolt |
| catalogue number | clamping bolt | wedge clamp | clamping screw | wrench for clamp screw | wrench for clamp screw | wrench for clamping bolt |
| right hand | ||||||
| 12250110100 | 12148060600 | 12148094300 | 12148574100 | 12148041000 | — | 12148046000 |
| 12250110300 | 12148060600 | 12148094400 | 12148574900 | — | 12148041100 | 12148046000 |
| 12250110500 | 12148060700 | 12148094500 | 12148574900 | — | 12148041100 | 12148040900 |
| 12250110700 | 12148060700 | 12148094600 | 12148574000 | — | 12148041200 | 12148040900 |
| 12250110900 | 12148060800 | 12148094700 | 12148574000 | 12148041000 | 12148041200 | — |
| left hand | ||||||
| 12250110200 | 12148060600 | 12148094300 | 12148574100 | 12148041000 | — | 12148046000 |
| 12250110400 | 12148060600 | 12148094400 | 12148574900 | — | 12148041100 | 12148046000 |
| 12250110600 | 12148060700 | 12148094500 | 12148574900 | — | 12148041100 | 12148040900 |
| 12250110800 | 12148060700 | 12148094600 | 12148574000 | — | 12148041200 | 12148040900 |
| 12250111000 | 12148060800 | 12148094700 | 12148574000 | 12148041000 | 12148041200 | — |
