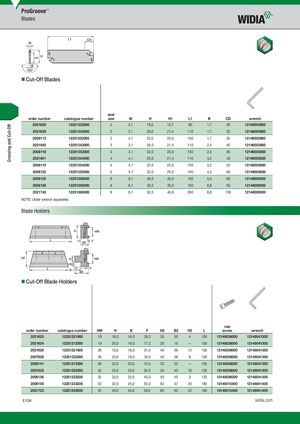

Blades
- Cut-Off Blades
| order number | catalogue number | seat size | W | H | H1 | L1 | B | CD | wrench |
| 2021629 | 12251332000 | 2 | 2,1 | 19,0 | 15,7 | 90 | 1,7 | 20 | 12146003800 |
| 2021639 | 12251342000 | 2 | 2,1 | 26,0 | 21,4 | 110 | 1,7 | 25 | 12146003800 |
| 2008113 | 12251352000 | 2 | 2,1 | 32,0 | 25,0 | 150 | 1,7 | 25 | 12146003800 |
| 2021640 | 12251343000 | 3 | 3,1 | 26,0 | 21,4 | 110 | 2,4 | 40 | 12146003800 |
| 2008116 | 12251353000 | 3 | 3,1 | 32,0 | 25,0 | 150 | 2,4 | 50 | 12146003800 |
| 2021641 | 12251344000 | 4 | 4,1 | 26,0 | 21,4 | 110 | 3,2 | 40 | 12146003800 |
| 2008119 | 12251354000 | 4 | 4,1 | 32,0 | 25,0 | 150 | 3,2 | 50 | 12146003800 |
| 2008122 | 12251355000 | 5 | 5,1 | 32,0 | 25,0 | 150 | 4,2 | 60 | 12146003800 |
| 2008135 | 12251356000 | 6 | 6,1 | 32,0 | 25,0 | 150 | 5,0 | 60 | 12146009500 |
| 2008138 | 12251358000 | 8 | 8,1 | 32,0 | 25,0 | 150 | 6,8 | 60 | 12146009500 |
| 2021743 | 12251368000 | 8 | 8,1 | 52,5 | 45,0 | 250 | 6,8 | 100 | 12146009500 |
NOTE: Order wrench separately.
Blade Holders
- Cut-Off Blade Holders
cap
| order number | catalogue number | HW | H | B | F | H2 | B2 | H3 | L | screw | wrench | ||||
| 2021625 | 12251221900 | 19 | 16,0 | 16,0 | 28,3 | 30 | 30 | 4 | 100 | 12148036000 | 12148041300 |
| order number | catalogue number | HW | H | B | F | H2 | B2 | H3 | L | cap screw | wrench |
| 2021625 | 12251221900 | 19 | 16,0 | 16,0 | 28,3 | 30 | 30 | 4 | 100 | 12148036000 | 12148041300 |
| 2021634 | 12251212500 | 19 | 25,0 | 19,0 | 17,3 | 25 | 19 | — | 100 | 12148036000 | 12148041300 |
| 2021626 | 12251221600 | 26 | 16,0 | 16,0 | 31,0 | 40 | 36 | 12 | 100 | 12148036000 | 12148041300 |
| 2007826 | 12251222000 | 26 | 20,0 | 18,0 | 33,0 | 40 | 38 | 8 | 100 | 12148036000 | 12148041300 |
| 2008141 | 12251213200 | 26 | 32,0 | 20,0 | 15,0 | 32 | 20 | — | 125 | 12148036000 | 12148041300 |
| 2021635 | 12251222500 | 32 | 25,0 | 20,0 | 35,0 | 50 | 40 | 10 | 125 | 12148036000 | 12148041300 |
| 2008156 | 12251223200 | 32 | 32,0 | 25,0 | 40,0 | 50 | 45 | 3 | 125 | 12148036000 | 12148041300 |
| 2008159 | 12251233200 | 53 | 32,0 | 25,0 | 50,0 | 82 | 57 | 30 | 160 | 12146013400 | 12148041400 |
| 2021723 | 12251234000 | 53 | 40,0 | 40,0 | 58,0 | 82 | 65 | 22 | 160 | 12146013400 | 12148041400 |
