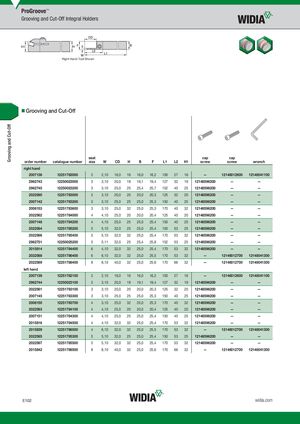

Grooving and Cut-Off Integral Holders
Right Hand Tool Shown
Grooving and Cut-Off
| order number | catalogue number | seat size | W | CD | H | B | F | L1 | L2 | H1 | cap screw | cap screw | wrench |
| right hand | |||||||||||||
| 2007136 | 12251782000 | 2 | 2,10 | 16,0 | 16 | 16,0 | 16,2 | 100 | 27 | 16 | — | 12146012600 | 12148041100 |
| 2962743 | 12250023000 | 3 | 3,10 | 20,0 | 19 | 19,1 | 19,4 | 127 | 32 | 19 | 12148596200 | — | — |
| 2962745 | 12250023200 | 3 | 3,10 | 25,0 | 25 | 25,4 | 25,7 | 152 | 40 | 25 | 12148596200 | — | — |
| 2022560 | 12251783000 | 3 | 3,10 | 20,0 | 20 | 20,0 | 20,3 | 125 | 32 | 20 | 12148596200 | — | — |
| 2007142 | 12251783200 | 3 | 3,10 | 25,0 | 25 | 25,0 | 25,3 | 150 | 40 | 25 | 12148596200 | — | — |
| 2008153 | 12251783600 | 3 | 3,10 | 25,0 | 32 | 25,0 | 25,3 | 170 | 40 | 32 | 12148596200 | — | — |
| 2022562 | 12251784000 | 4 | 4,10 | 25,0 | 20 | 20,0 | 20,4 | 125 | 40 | 20 | 12148596200 | — | — |
| 2007148 | 12251784200 | 4 | 4,10 | 25,0 | 25 | 25,0 | 25,4 | 150 | 40 | 25 | 12148596200 | — | — |
| 2022564 | 12251785200 | 5 | 5,10 | 32,0 | 25 | 25,0 | 25,4 | 150 | 53 | 25 | 12148596200 | — | — |
| 2022566 | 12251785400 | 5 | 5,10 | 32,0 | 32 | 25,0 | 25,4 | 170 | 53 | 32 | 12148596200 | — | — |
| 2962751 | 12250025200 | 5 | 5,11 | 32,0 | 25 | 25,4 | 25,8 | 152 | 53 | 25 | 12148596200 | — | — |
| 2015814 | 12251784400 | 6 | 4,10 | 32,0 | 32 | 25,0 | 25,4 | 170 | 53 | 32 | 12148596200 | — | — |
| 2022568 | 12251786400 | 6 | 6,10 | 32,0 | 32 | 25,0 | 25,5 | 170 | 53 | 32 | — | 12146012700 | 12148041300 |
| 2022569 | 12251788400 | 8 | 8,10 | 40,0 | 32 | 25,0 | 25,6 | 170 | 66 | 32 | — | 12146012700 | 12148041300 |
| left hand | |||||||||||||
| 2007139 | 12251782100 | 2 | 2,10 | 16,0 | 16 | 16,0 | 16,2 | 100 | 27 | 16 | — | 12146012600 | 12148041100 |
| 2962744 | 12250023100 | 3 | 3,10 | 20,0 | 19 | 19,1 | 19,4 | 127 | 32 | 19 | 12148596200 | — | — |
| 2022561 | 12251783100 | 3 | 3,10 | 20,0 | 20 | 20,0 | 20,3 | 125 | 32 | 20 | 12148596200 | — | — |
| 2007145 | 12251783300 | 3 | 3,10 | 25,0 | 25 | 25,0 | 25,3 | 150 | 40 | 25 | 12148596200 | — | — |
| 2008150 | 12251783700 | 4 | 3,10 | 25,0 | 32 | 25,0 | 25,3 | 170 | 40 | 32 | 12148596200 | — | — |
| 2022563 | 12251784100 | 4 | 4,10 | 25,0 | 20 | 20,0 | 20,4 | 125 | 40 | 20 | 12148596200 | — | — |
| 2007151 | 12251784300 | 4 | 4,10 | 25,0 | 25 | 25,0 | 25,4 | 150 | 40 | 25 | 12148596200 | — | — |
| 2015816 | 12251784500 | 4 | 4,10 | 32,0 | 32 | 25,0 | 25,4 | 170 | 53 | 32 | 12148596200 | — | — |
| 2015839 | 12251786500 | 4 | 6,10 | 32,0 | 32 | 25,0 | 25,5 | 170 | 53 | 32 | — | 12146012700 | 12148041300 |
| 2022565 | 12251785300 | 5 | 5,10 | 32,0 | 25 | 25,0 | 25,4 | 150 | 53 | 25 | 12148596200 | — | — |
| 2022567 | 12251785500 | 5 | 5,10 | 32,0 | 32 | 25,0 | 25,4 | 170 | 53 | 32 | 12148596200 | — | — |
| 2015842 | 12251788500 | 8 | 8,10 | 40,0 | 32 | 25,0 | 25,6 | 170 | 66 | 32 | — | 12146012700 | 12148041300 |
