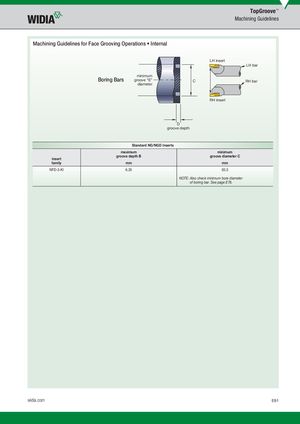

Machining Guidelines for Face Grooving Operations • Internal
minimum Boring Bars groove “E” diameter
C
LH insert LH bar
RH bar
RH insert
D groove depth
Standard NG/NGD Inserts maximum minimum groove depth B groove diameter C insert
| family | mm | mm |
| NFD-3-KI | 6,35 | 63,5 |
NOTE: Also check minimum bore diameter of boring bar. See page E78.
