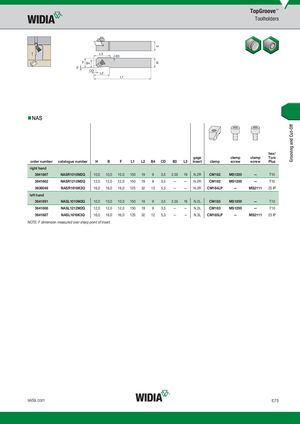

Общий каталог Widia 2017 - страница 539
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
F B4 3° CD
L3
L2
H
B3 B
L1
NAS
| order number | catalogue number | H | B | F | L1 | L2 | B4 | CD | B3 | L3 | gage insert | clamp | clamp screw | clamp screw | hex/ Torx Plus |
| right hand | |||||||||||||||
| 3641667 | NASR1010M2Q | 10,0 | 10,0 | 10,0 | 150 | 19 | 9 | 3,5 | 2,03 | 19 | N.2R | CM182 | MS1200 | — | T10 |
| 3641662 | NASR1212M2Q | 12,0 | 12,0 | 12,0 | 150 | 19 | 9 | 3,5 | — | — | N.2R | CM182 | MS1200 | — | T10 |
| 3639048 | NASR1616K3Q | 16,0 | 16,0 | 16,0 | 125 | 32 | 12 | 5,3 | — | — | N.3R | CM184LP | — | MS2111 | 25 IP |
| left hand | |||||||||||||||
| 3641691 | NASL1010M2Q | 10,0 | 10,0 | 10,0 | 150 | 19 | 9 | 3,5 | 2,03 | 19 | N.2L | CM183 | MS1200 | — | T10 |
| 3641686 | NASL1212M2Q | 12,0 | 12,0 | 12,0 | 150 | 19 | 9 | 3,5 | — | — | N.2L | CM183 | MS1200 | — | T10 |
| 3641687 | NASL1616K3Q | 16,0 | 16,0 | 16,0 | 125 | 32 | 12 | 5,3 | — | — | N.3L | CM185LP | — | MS2111 | 25 IP |
