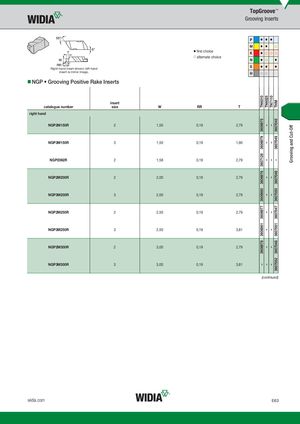

Right-hand insert shown; left-hand insert is mirror image.
NGP • Grooving Positive Rake Inserts
first choice alternate choice
P M K N S H
insert
| catalogue number | size | W | RR | T | ||
| right hand | ||||||
| NGP2M150R | 2 | 1,50 | 0,19 | 2,79 |
NGP3M150R 3 1,50 0,19 1,90
NGP2062R 2 1,58 0,19 2,79
NGP2M200R 2 2,00 0,19 2,79
NGP3M200R 3 2,00 0,19 2,79
NGP2M250R 2 2,50 0,19 2,79
NGP3M250R 3 2,50 0,19 3,81
NGP2M300R 2 3,00 0,19 2,79
NGP3M300R 3 3,00 0,19 3,81
(continued)
