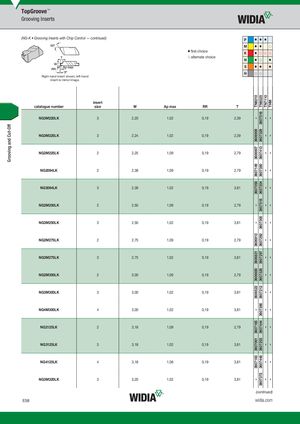

| (- roovng nsers w p o | ro — connue) | P M | � � � � � | |||
| catalogue number Right-hand insert shown; lef insert is mirror image. | insert size t-hand | W | Ap max | �first choice �alternate choice RR | K N S H T | � � � � � � � � � � � � � TN6010 TN6025 TN7110 THM |
| NG3M220LK | 3 | 2,20 | 1,02 | 0,19 | 2,39 | – 607516 – – |
| and Cut-Off NG3M225LK | 3 | 2,24 | 1,02 | 0,19 | 2,39 | 3 3606909 3607329 – – |
| Grooving NG2M225LK | 2 | 2,25 | 1,09 | 0,19 | 2,79 | 3606907 3607413 – – |
| NG2094LK | 2 | 2,39 | 1,09 | 0,19 | 2,79 | 3607149 3607380 – – |
| NG3094LK | 3 | 2,39 | 1,02 | 0,19 | 3,81 | 3607058 3607204 – – |
| NG2M250LK | 2 | 2,50 | 1,09 | 0,19 | 2,79 | – 3607518 – – |
| NG3M250LK | 3 | 2,50 | 1,02 | 0,19 | 3,81 | – 3607300 – – |
| NG2M275LK | 2 | 2,75 | 1,09 | 0,19 | 2,79 | 3606913 3607292 – – |
| NG3M275LK | 3 | 2,75 | 1,02 | 0,19 | 3,81 | 3606831 3607297 – – |
| NG2M300LK | 2 | 3,00 | 1,09 | 0,19 | 2,79 | 3606680 3607326 – – |
| NG3M300LK | 3 | 3,00 | 1,02 | 0,19 | 3,81 | 3606522 3607212 – – |
| NG4M300LK | 4 | 3,00 | 1,02 | 0,19 | 3,81 | – 3607386 – – |
| NG2125LK | 2 | 3,18 | 1,09 | 0,19 | 2,79 | 3607165 3607444 – – |
| NG3125LK | 3 | 3,18 | 1,02 | 0,19 | 3,81 | 3607061 3607203 – – |
| NG4125LK | 4 | 3,18 | 1,06 | 0,19 | 3,81 | 3607183 3607448 – – |
| NG3M320LK | 3 | 3,20 | 1,02 | 0,19 | 3,81 | – 3607372 – – |
| E58 | widia.com (continued) |
