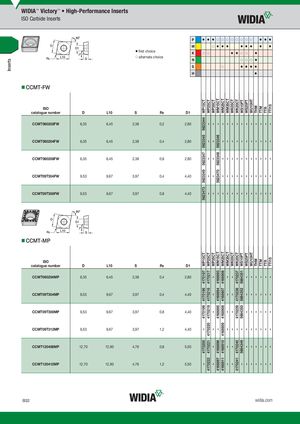

Общий каталог Widia 2017 - страница 52
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
first choice alternate choice
- CCMT-FW
P M K N S H
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| CCMT060202FW | 6,35 | 6,45 | 2,38 | 0,2 | 2,80 |
CCMT060204FW 6,35 6,45 2,38 0,4 2,80
CCMT060208FW 6,35 6,45 2,38 0,8 2,80
CCMT09T304FW 9,53 9,67 3,97 0,4 4,40
CCMT09T308FW 9,53 9,67 3,97 0,8 4,40
- CCMT-MP
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| CCMT060204MP | 6,35 | 6,45 | 2,38 | 0,4 | 2,80 |
CCMT09T304MP 9,53 9,67 3,97 0,4 4,40
CCMT09T308MP 9,53 9,67 3,97 0,8 4,40
CCMT09T312MP 9,53 9,67 3,97 1,2 4,40
CCMT120408MP 12,70 12,90 4,76 0,8 5,50
CCMT120412MP 12,70 12,90 4,76 1,2 5,50
