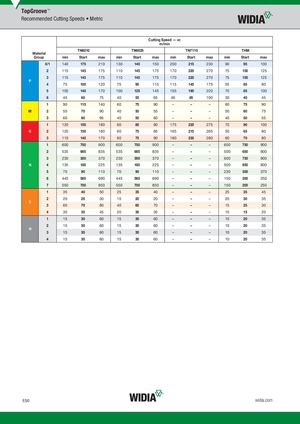

Общий каталог Widia 2017 - страница 514
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
| Cutting Sp m/ | eed — vc min | |||||||||||
| Material | TN6010 | TN6025 | TN7110 | THM | ||||||||
| Group | min | Start | max | min | Start | max | min | Start | max | min | Start | max |
| 0/1 | 140 | 175 | 210 | 130 | 140 | 150 | 200 | 215 | 230 | 90 | 95 | 100 |
| 2 | 115 | 145 | 175 | 110 | 145 | 175 | 170 | 220 | 270 | 75 | 100 | 125 |
| 3 | 115 | 145 | 175 | 110 | 145 | 175 | 170 | 220 | 270 | 75 | 100 | 125 |
| P 4 | 75 | 100 | 120 | 75 | 95 | 115 | 115 | 145 | 175 | 55 | 65 | 80 |
| 5 | 105 | 140 | 170 | 100 | 125 | 145 | 155 | 190 | 220 | 70 | 85 | 100 |
| 6 | 45 | 60 | 75 | 40 | 55 | 65 | 65 | 85 | 100 | 30 | 40 | 45 |
| 1 | 90 | 115 | 140 | 60 | 75 | 90 | – | – | – | 60 | 75 | 90 |
| M 2 | 55 | 70 | 90 | 40 | 50 | 55 | – | – | – | 50 | 60 | 75 |
| 3 | 60 | 80 | 95 | 40 | 50 | 60 | – | – | – | 40 | 50 | 55 |
| 1 | 120 | 150 | 180 | 60 | 80 | 90 | 175 | 220 | 275 | 70 | 90 | 100 |
| K 2 | 120 | 150 | 180 | 60 | 75 | 85 | 165 | 215 | 265 | 50 | 65 | 80 |
| 3 | 110 | 140 | 170 | 60 | 75 | 90 | 180 | 230 | 280 | 60 | 70 | 80 |
| 1 | 600 | 750 | 900 | 600 | 750 | 900 | – | – | – | 600 | 750 | 900 |
| 2 | 535 | 685 | 835 | 535 | 685 | 835 | – | – | – | 500 | 650 | 800 |
| 3 | 230 | 300 | 370 | 230 | 300 | 370 | – | – | – | 600 | 750 | 900 |
| N 4 | 135 | 180 | 225 | 135 | 180 | 225 | – | – | – | 500 | 650 | 800 |
| 5 | 70 | 90 | 110 | 70 | 90 | 110 | – | – | – | 230 | 300 | 370 |
| 6 | 445 | 565 | 690 | 445 | 565 | 690 | – | – | – | 150 | 200 | 250 |
| 7 | 550 | 700 | 850 | 550 | 700 | 850 | – | – | – | 150 | 200 | 250 |
| 1 | 35 | 40 | 50 | 25 | 35 | 40 | – | – | – | 25 | 35 | 45 |
| S 2 | 20 | 20 | 30 | 15 | 20 | 20 | – | – | – | 20 | 30 | 35 |
| 3 | 60 | 70 | 80 | 40 | 60 | 70 | – | – | – | 15 | 25 | 30 |
| 4 | 30 | 35 | 45 | 20 | 30 | 35 | – | – | – | 10 | 15 | 20 |
| 1 | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | 10 | 20 | 35 |
| 2 | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | 10 | 20 | 35 |
| H 3 | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | 10 | 20 | 35 |
| 4 | 15 | 30 | 60 | 15 | 30 | 60 | – | – | – | 10 | 20 | 35 |
