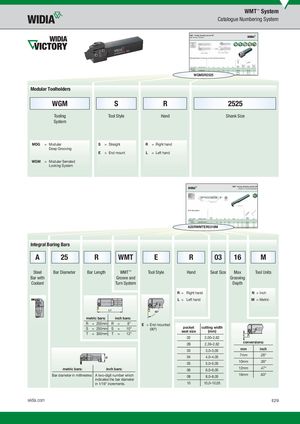

WMT™ System
WGMSR2525
Modular Toolholders
| WGM | S | R | 2525 | |
| Tooling | Tool Style | Hand | Shank Size |
System
| MDG | = Modular | S | = Straight | R | = Right hand | |
| Deep Grooving | ||||||
| E | = End mount | L | = Left hand |
WGM = Modular Serrated Locking System
A25RWMTER0316M
Integral Boring Bars
| A | 25 | R | WMT | E | R | 03 | 16 | M | ||||||
| Steel | Bar Diameter | Bar Length | WMT™ | Tool Style | Hand | Seat Size | Max | Tool Units | ||||||
| Bar with | Groove and | Grooving | ||||||||||||
| Coolant | Turn System | Depth |
R = Right hand N = Inch L = Left hand M = Metric
metric bars: inch bars:
| R | = 200mm | R | = | 8" | E | = End mounted |
| S | = 250mm | S | = | 10" | ||
| (90º) | ||||||
| T | = 300mm | T | = | 12" |
metric bars: inch bars: Bar diameter in millimetres A two-digit number which indicates the bar diameter in 1/16" increments.
pocket cutting width
| seat size | (mm) |
| 02 | 2,00–2,62 |
| 2B | 2,39–2,62 |
| 03 | 3,0–3,05 |
| 04 | 4,0–4,05 |
| 05 | 5,0–5,05 |
| 06 | 6,0–6,05 |
| 08 | 8,0–8,05 |
| 10 | 10,0–10,05 |
conversions:
| mm | inch |
| 7mm | .28" |
| 10mm | .39" |
| 12mm | .47" |
| 16mm | .63" |
