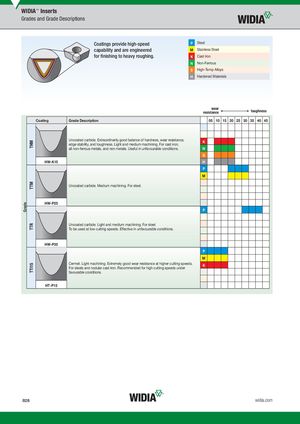

| Coatings provide high-speed | P | Steel |
| capability and are engineered | M | Stainless Steel |
| for fi nishing to heavy roughing. | K | Cast Iron |
N Non-Ferrous S High-Temp Alloys H Hardened Materials
wear toughness resistance
Coating Grade Description 05 10 15 20 25 30 35 40 45
Uncoated carbide. Extraordinarily good balance of hardness, wear resistance, edge stability, and toughness. Light and medium machining. For cast iron, all non-ferrous metals, and non-metals. Useful in unfavourable conditions.
HW-K15
Uncoated carbide. Medium machining. For steel.
K N S H P M
HW-P25 P
Uncoated carbide. Light and medium machining. For steel. To be used at low cutting speeds. Effective in unfavourable conditions.
HW-P35
Cermet. Light machining. Extremely good wear resistance at higher cutting speeds. For steels and nodular cast iron. Recommended for high cutting speeds under favourable conditions.
P M K
HT-P15
B28 B28 widia.com
