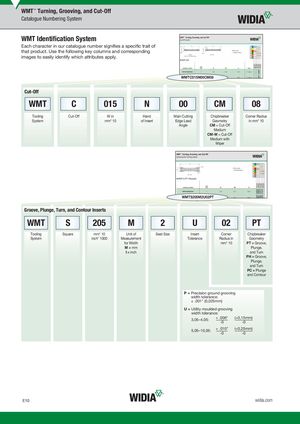

images to easily identify which attributes apply.
WMTC015N00CM08
| WMT | C | 015 | N | 00 | CM | 08 | ||
| Tooling | Cut-Off | W in | Hand | Main Cutting | Chipbreaker | Corner Radius | ||
| System | mm* 10 | of Insert | Edge Lead | Geometry | in mm* 10 |
Angle CM = Cut-Off Medium CM-W = Cut-Off Medium with Wiper
WMTS205M2U02PT
| WMT | S | 205 | M | 2 | U | 02 | PT | ||||
| Tooling | Square | mm* 10 | Unit of | Seat Size | Insert | Corner | Chipbreaker | ||||
| System | inch* 1000 | Measurement | Tolerance | Radius in | Geometry | ||||||
| for Width | mm* 10 | PT = Groove, |
M = mm Plunge, I = inch and Turn PH = Groove, Plunge, and Turn PC = Plunge and Contour
P = Precision ground grooving width tolerance: ± .001" (0,025mm) U = Utility moulded grooving width tolerance: + .006" (+0,15mm) 3,05–4,05: -0 -0 + .010" (+0,25mm) 5,05–10,05: -0 -0
