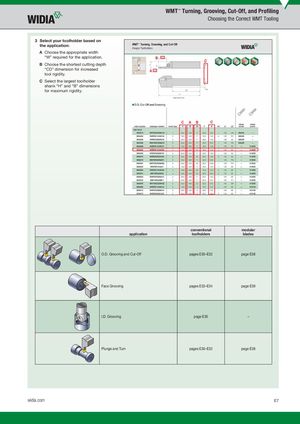

3 Select your toolholder based on
the application: A Choose the appropriate width “W” required for the application. B Choose the shortest cutting depth “CD” dimension for increased tool rigidity. C Select the largest toolholder shank “H” and “B” dimensions for maximum rigidity.
B C
A
C A B C
conventional modular
application toolholders blades
O.D. Grooving and Cut-Off pages E30–E32 page E38
Face Grooving pages E33–E34 page E39
I.D. Grooving page E35 –
Plunge and Turn pages E30–E32 page E38
