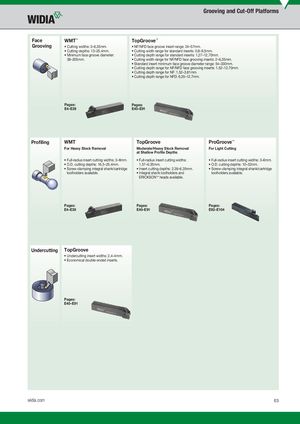

Grooving and Cut-Off Platforms
| Face | WMT™ | TopGroove™ |
| Grooving | Cutting widths: 3–6,35mm. | NF/NFD face groove insert range: 24–57mm. |
- Cutting depths: 13–25,4mm.
- Cutting width range for standard inserts: 0,8–9,5mm.
- Minimum face groove diameter:
- Cutting depth range for standard inserts: 1,27–12,70mm.
38–205mm. Cutting width range for NF/NFD face grooving inserts: 2–6,35mm.
- Standard insert minimum face groove diameter range: 54–330mm.
- Cutting depth range for NF/NFD face grooving inserts: 1,52–12,70mm.
- Cutting depth range for NF: 1,52–3,81mm.
- Cutting depth range for NFD: 6,35–12,7mm.
Pages: Pages: E4–E39 E40–E91
| Profi ling | WMT | TopGroove | ProGroove™ |
| For Heavy Stock Removal | Moderate/Heavy Stock Removal | For Light Cutting |
at Shallow Profi le Depths
- Full-radius insert cutting widths: 3–8mm.
- Full-radius insert cutting widths:
- Full-radius insert cutting widths: 3–6mm.
- O.D. cutting depths: 16,5–25,4mm. 1,57–6,35mm.
- O.D. cutting depths: 10–32mm.
- Screw-clamping integral shank/cartridge
- Insert cutting depths: 2,39–6,35mm.
- Screw-clamping integral shank/cartridge
toolholders available. Integral shank toolholders and toolholders available.
ERICKSON™ heads available.
| Pages: | Pages: | Pages: |
| E4–E39 | E40–E91 | E92–E104 |
Undercutting TopGroove
- Undercutting insert widths: 2,4–4mm.
- Economical double-ended inserts.
Pages: E40–E91
