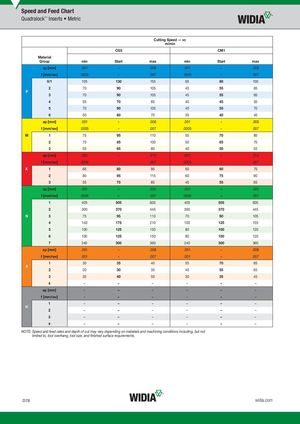

Quadralock™ Inserts • Metric
| Cutting Sp m/ | eed — vc min | |||||
| CG5 | CM1 | |||||
| Material Group | min | Start | max | min | Start | max |
| ap [mm] | .001 | - | .008 | .001 | - | .008 |
| f [mm/rev] | .0005 | - | .007 | .0005 | - | .007 |
| 0/1 | 105 | 130 | 155 | 65 | 80 | 100 |
| P 2 | 70 | 90 | 105 | 45 | 55 | 65 |
| 3 | 70 | 90 | 105 | 45 | 55 | 65 |
| 4 | 55 | 70 | 85 | 40 | 45 | 55 |
| 5 | 70 | 90 | 105 | 45 | 55 | 70 |
| 6 | 50 | 60 | 70 | 35 | 40 | 45 |
| ap [mm] | .001 | - | .008 | .001 | - | .008 |
| f [mm/rev] | .0005 | - | .007 | .0005 | - | .007 |
| M 1 | 75 | 95 | 110 | 55 | 70 | 85 |
| 2 | 70 | 85 | 100 | 50 | 65 | 75 |
| 3 | 55 | 65 | 80 | 40 | 50 | 55 |
| ap [mm] | .001 | - | .010 | .001 | - | .010 |
| K f [mm/rev] 1 | .0005 65 | - 80 | .007 95 | .0005 50 | - 60 | .007 75 |
| 2 | 80 | 95 | 115 | 60 | 75 | 90 |
| 3 | 55 | 70 | 85 | 45 | 55 | 65 |
| ap [mm] | .001 | – | .025 | .001 | – | .025 |
| f [mm/rev] 1 | .0005 405 | – 505 | .007 605 | .0005 405 | – 505 | .007 605 |
| 2 | 300 | 370 | 445 | 300 | 370 | 445 |
| N 3 | 75 | 95 | 110 | 70 | 90 | 105 |
| 4 | 140 | 175 | 210 | 105 | 125 | 155 |
| 5 | 100 | 125 | 150 | 80 | 100 | 120 |
| 6 | 100 | 125 | 150 | 80 | 100 | 120 |
| 7 | 240 | 300 | 360 | 240 | 300 | 360 |
| ap [mm] | .001 | - | .008 | .001 | - | .008 |
| f [mm/rev] | .001 | - | .007 | .001 | - | .007 |
| 1 | 30 | 35 | 40 | 55 | 70 | 85 |
| S 2 | 20 | 30 | 35 | 45 | 55 | 65 |
| 3 | 35 | 40 | 50 | 30 | 35 | 45 |
| 4 | – | – | – | – | – | – |
| ap [mm] f [mm/rev] | – – | – – | – – | – – | – – | – – |
| H 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – |
| 4 | – | – | – | – | – | – |
