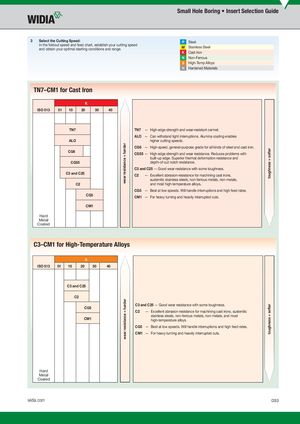

Small Hole Boring • Insert Selection Guide
3 Select the Cutting Speed: In the foldout speed and feed chart, establish your cutting speed and obtain your optimal starting conditions and range.
| P | Steel |
| M | Stainless Steel |
| K | Cast Iron |
| N | Non-Ferrous |
| S | High-Temp Alloys |
| H | Hardened Materials |
TN7–CM1 for Cast Iron
K
ISO 513 01 10 20 30 40
Hard Metal Coated
TN7
ALO
CG6
CG55
C3 and C25
C2
CG5
CM1
| TN7 | — High edge strength and wear-resistant cermet. | |
| ALO | — Can withstand light interruptions. Alumina coating enables | |
| higher cutting speeds. | ||
| CG6 | — High-speed, general-purpose grade for all kinds of steel and cast iron. | |
| CG55 — High edge strength and wear resistance. Reduces problems with | ||
| built-up edge. Superior thermal deformation resistance and | ||
| depth-of-cut notch resistance. | ||
| C3 and C25 — Good wear resistance with some toughness. | ||
| C2 | — Excellent abrasion-resistance for machining cast irons, | |
| austenitic stainless steels, non-ferrous metals, non-metals, | ||
| and most high-temperature alloys. | ||
| CG5 | — Best at low speeds. Will handle interruptions and high feed rates. |
CM1 — For heavy turning and heavily interrupted cuts.
C3–CM1 for High-Temperature Alloys
S
ISO 513 01 10 20 30 40
C3 and C25
C2
CG5
CM1
C3 and C25 — Good wear resistance with some toughness.
| C2 | — | Excellent abrasion resistance for machining cast irons, austenitic |
| stainless steels, non-ferrous metals, non-metals, and most | ||
| high-temperature alloys. | ||
| CG5 | — | Best at low speeds. Will handle interruptions and high feed rates. |
CM1 — For heavy turning and heavily interrupted cuts.
Hard Metal Coated
