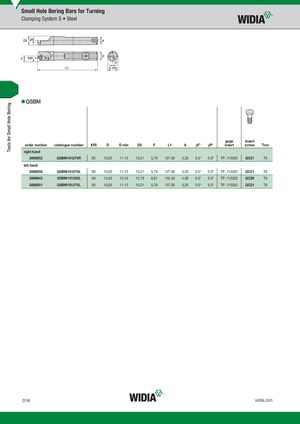

QSBM
gage insert
| order number | catalogue number | KRI | D | D min | D2 | F | L1 | A | aF° | aP° | insert | screw | Torx | |
| right hand | ||||||||||||||
| 3886552 | QSBM101275R | 95 | 10,00 | 11,15 | 10,21 | 5,79 | 127,00 | 3,20 | 0.0° | 5.0° | TP..110202 | QC21 | T9 | |
| left hand | ||||||||||||||
| 3886550 | QSBM101270L | 90 | 10,00 | 11,15 | 10,21 | 5,79 | 127,00 | 3,20 | 0.0° | 5.0° | TP..110202 | QC21 | T9 | |
| 3886943 | QSBM121520L | 90 | 12,00 | 13,16 | 12,19 | 6,81 | 152,40 | 4,00 | 0.0° | 5.0° | TP..110202 | QC26 | T9 | |
| 3886551 | QSBM101275L | 95 | 10,00 | 11,15 | 10,21 | 5,79 | 127,00 | 3,20 | 0.0° | 5.0° | TP..110202 | QC21 | T9 |
