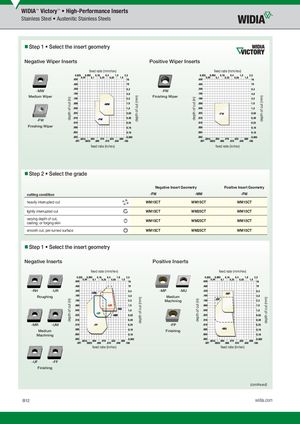

  • Step 1 • Select the insert geometry

Negative Wiper Inserts Positive Wiper Inserts

feed rate (mm/rev) feed rate (mm/rev)

-MW -FW Medium Wiper Finishing Wiper

-FW Finishing Wiper

feed rate (in/rev) feed rate (in/rev)

  • Step 2 • Select the grade

Negative Insert Geometry Positive Insert Geometry

Negative Insert GeometryPositive Insert Geometry
cutting condition-FW-MW-FW
heavily interrupted cutWM15CTWM15CTWM15CT
lightly interrupted cutWM15CTWM25CTWM15CT
varying depth of cut, casting, or forging skinWM15CTWM25CTWM15CT
smooth cut, pre-turned surfaceWM15CTWM25CTWM15CT
  • Step 1 • Select the insert geometry

Negative Inserts Positive Inserts

feed rate (mm/rev) feed rate (mm/rev)

-RH -UR -MP -MU

Roughing Medium Machining

-MR -UM -FP

Medium Finishing Machining

feed rate (in/rev) feed rate (in/rev)

-UF -FF Finishing

(continued)
