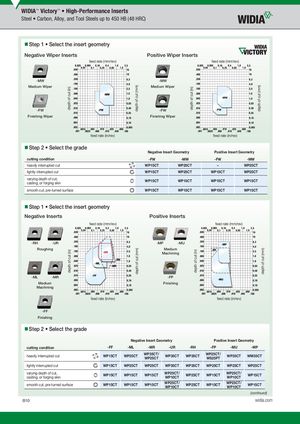

  • Step 1 • Select the insert geometry

Negative Wiper Inserts Positive Wiper Inserts

feed rate (mm/rev) feed rate (mm/rev)

-MW -MW Medium Wiper Medium Wiper

-FW -FW Finishing Wiper Finishing Wiper

feed rate (in/rev) feed rate (in/rev)

  • Step 2 • Select the grade

Negative Insert Geometry Positive Insert Geometry

cutting condition-FW-MW-FW-MW
heavily interrupted cutWP15CTWP25CT–WP25CT
lightly interrupted cutWP15CTWP25CTWP15CTWP25CT
varying depth of cut,
WP15CTWP15CTWP15CTWP15CT
casting, or forging skin
smooth cut, pre-turned surfaceWP15CTWP15CTWP15CTWP15CT
  • Step 1 • Select the insert geometry

Negative Inserts Positive Inserts

feed rate (mm/rev) feed rate (mm/rev)

-RH -UR -MP -MU

Roughing Medium Machining

-ML -MR -FP

Medium Finishing Machining

feed rate (in/rev) feed rate (in/rev)

-FF Finishing

  • Step 2 • Select the grade

Negative Insert Geometry Positive Insert Geometry

cutting condition-FF-ML-MR-UR-RH-FP-MU-MP
WP35CT/WP25CT/
heavily interrupted cutWP15CTWP25CTWP35CTWP35CTWP35CTWM35CT
Negative Insert GeometryPositive Insert Geometry
cutting condition-FF-ML-MR-UR-RH-FP-MU-MP
heavily interrupted cutWP15CTWP25CTWP35CT/ WP25CTWP35CTWP35CTWP25CT/ WS25PTWP35CTWM35CT
lightly interrupted cutWP15CTWP25CTWP25CTWP35CTWP35CTWP25CTWP25CTWP25CT
varying depth of cut, casting, or forging skinWP15CTWP15CTWP15CTWP25CT/ WP10CTWP25CTWP15CTWP25CT/ WP10CTWP15CT
smooth cut, pre-turned surfaceWP15CTWP15CTWP15CTWP25CT/ WP10CTWP25CTWP15CTWP25CT/ WP10CT(continued) WP15CT
