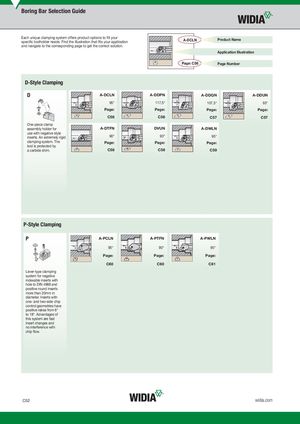

Boring Bar Selection Guide
Each unique clamping system offers product options to fi ll your specifi c toolholder needs. Find the illustration that fi ts your application and navigate to the corresponding page to get the correct solution.
A-DCLN Product Name
Application Illustration
Page: C56 Page Number
D-Style Clamping
D A-DCLN A-DDPN A-DDQN A-DDUN
| 95° | 117,5° | 107,5° | 93° | |||
| Page: | Page: | Page: | Page: | |||
| C56 | C56 | C57 | C57 | |||
| One-piece clamp | ||||||
| assembly holder for | A-DTFN | DVUN | A-DWLN | |||
| use with negative style | ||||||
| inserts. An extremely rigid | 90° | 93° | 95° | |||
| clamping system. The | Page: | Page: | Page: | |||
| tool is protected by | ||||||
| a carbide shim. | C58 | C58 | C59 |
P-Style Clamping
P
Lever-type clamping system for negative indexable inserts with hole to DIN 4988 and positive round inserts more than 20mm in diameter. Inserts with one- and two-side chip control geometries have positive rakes from 6° to 18°. Advantages of this system are fast insert changes and no interference with chip fl ow.
A-PCLN A-PTFN A-PWLN
95° 90° 95°
| Page: | Page: | Page: |
| C60 | C60 | C61 |
