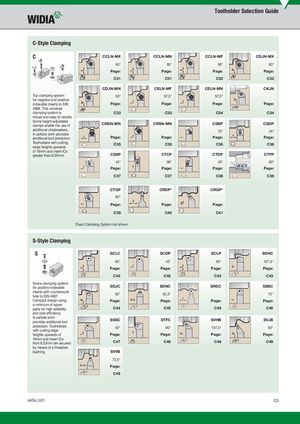

Toolholder Selection Guide
C-Style Clamping
C
Top clamping system for negative and positive indexable inserts to DIN 4968. This universal clamping system is robust and easy to handle. Some height-adjustable clamps enable the use of additional chipbreakers. A carbide shim provides additional tool protection. Toolholders with cutting edge heights upwards of 16mm and insert iCs greater than 6,35mm.
CCLN-MX CCLN-MN CCLN-MF CDJN-MX
95° 95° 95° 93°
| Page: | Page: | Page: | Page: |
| C31 | C31 | C32 | C32 |
CDJN-MN CELN-MF CELN-MN CKJN
| 93° | 97,5° | 97,5° | |||||
| Page: | Page: | Page: | Page: | ||||
| C33 | C33 | C34 | C34 | ||||
| CRDN-MN | CRSN-MN | CSBP | CSDP | ||||
| 75° | 45° | ||||||
| Page: | Page: | Page: | Page: | ||||
| C35 | C35 | C36 | C36 | ||||
| CSSP | CTCP | CTDP | CTFP | ||||
| 45° | 90° | 45° | 90° | ||||
| Page: | Page: | Page: | Page: | ||||
| C37 | C37 | C38 | C38 |
| CTGP | CRDP* | CRGP* | |
| 90° | |||
| Page: | Page: | Page: |
C39 C40 C41
*Exact Clamping System not shown.
S-Style Clamping
S SCLC SCDP SCLP SDHC
95° 45° 95° 107,5°
| Page: | Page: | Page: | Page: | |
| C42 | C42 | C43 | C43 | |
| Screw clamping system | ||||
| for positive indexable | SDJC | SDNC | SRDC | SSBC |
| inserts with countersunk |
| 93° | 62,5° | 75° | |
| hole to DIN 4967. |
| Compact design using | Page: | Page: | Page: | Page: | |||
| a minimum of spare | |||||||
| parts for high reliability | C44 | C45 | C45 | C46 | |||
| and cost effi ciency. | |||||||
| A carbide shim | |||||||
| SSSC | STFC | SVHB | SVJB | ||||
| provides additional tool | |||||||
| protection. Toolholders | 45° | 90° | 107,5° | 93° | |||
| with cutting edge | |||||||
| heights upwards of | Page: | Page: | Page: | Page: | |||
| 16mm and insert iCs | |||||||
| C47 | C48 | C48 | C49 |
from 9,52mm are secured by means of a threaded bushing. SVVB 72,5°
Page: C49
