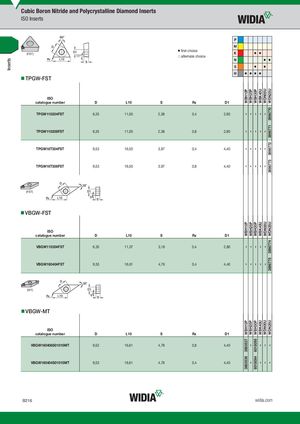

(FST)
- TPGW-FST
first choice alternate choice
P M K N S H
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| TPGW110204FST | 6,35 | 11,00 | 2,38 | 0,4 | 2,80 |
TPGW110208FST 6,35 11,00 2,38 0,8 2,80
TPGW16T304FST 9,53 16,50 3,97 0,4 4,40
TPGW16T308FST 9,53 16,50 3,97 0,8 4,40
(FST)
- VBGW-FST
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| VBGW110304FST | 6,35 | 11,07 | 3,18 | 0,4 | 2,80 |
VBGW160404FST 9,53 16,61 4,76 0,4 4,40
(MT)
- VBGW-MT
ISO
| catalogue number | D | L10 | S | R¡ | D1 | |
| VBGW160408S01015MT | 9,52 | 16,61 | 4,78 | 0,8 | 4,40 |
VBGW160404S01015MT 9,53 16,61 4,78 0,4 4,40
