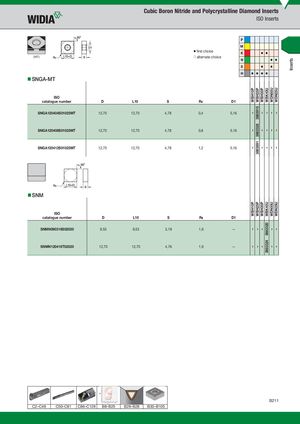

Cubic Boron Nitride and Polycrystalline Diamond Inserts
ISO Inserts
P
M
first choice
K
(MT) alternate choice
Inserts
N
S
H
SNGA-MT
WDN00U
WDN25U
WBK40U
WBH10P
WBH25P
WBH30P
ISO
catalogue number D L10 S R¡ D1
3883915
SNGA120404S01025MT 12,70 12,70 4,78 0,4 5,16
–
–
–
–
–
3883328
SNGA120408S01025MT 12,70 12,70 4,78 0,8 5,16
–
–
–
–
–
3883891
SNGA120412S01025MT 12,70 12,70 4,78 1,2 5,16
–
–
–
–
–
SNM
WDN00U
WDN25U
WBK40U
WBH10P
WBH25P
WBH30P
ISO
catalogue number D L10 S R¡ D1
3883320
SNMN090316S02020 9,53 9,53 3,18 1,6 —
–
–
–
–
–
3883324
SNMN120416T02020 12,70 12,70 4,76 1,6 —
–
–
–
–
–
B211
C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105
WID_Master16_Turning_Inserts_B210_B211_Metric_REBRAND.indd 211 L V i WID M 16 T i I B210 B211 M i REBRANDN b 1120151108AM
11/11/15 5:39 PM
