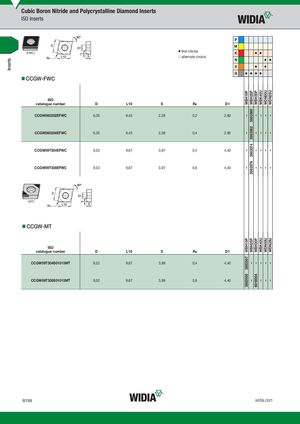

Общий каталог Widia 2017 - страница 218
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
first choice (FWC) alternate choice
CCGW-FWC
P M K N S H
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| CCGW060202EFWC | 6,35 | 6,45 | 2,38 | 0,2 | 2,80 |
CCGW060204EFWC 6,35 6,45 2,38 0,4 2,80
CCGW09T304EFWC 9,53 9,67 3,97 0,4 4,40
CCGW09T308EFWC 9,53 9,67 3,97 0,8 4,40
(MT)
CCGW-MT
ISO
| catalogue number | D | L10 | S | R¡ | D1 | |
| CCGW09T304S01015MT | 9,52 | 9,67 | 3,99 | 0,4 | 4,40 |
CCGW09T308S01015MT 9,52 9,67 3,99 0,8 4,40
