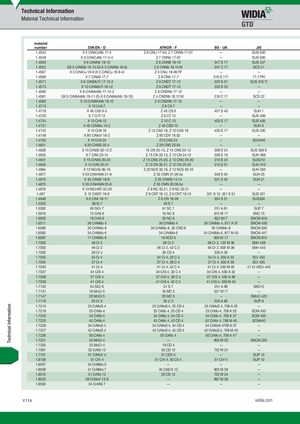

- Material Overview • DIN
material
| number | DIN EN - D | AFNOR - F | BS - UK | JIS | ||||
| 1.4542 | X 5 CrNiCuNb 17-4 | Z 6 CNU 17-04, Z 7 CNNb 17-07 | — | SUS 630 | ||||
| 1.4548 | X 5 CrNiCuNb 17-4-4 | Z 7 CNNb 17-07 | — | SUS 630 | ||||
| 1.4550 | X 6 CrNiNb 18-10 | Z 6 CNNB 18-10 | 347 S 17 | SUS 347 | ||||
| 1.4552 | GX 5 CrNiNb 19-10 (G-X 5 CrNiNb 18-9) | Z 6 CNNb 18.10 M | 347 C 17 | SCS 21 | ||||
| 1.4567 | X 3 CrNiCu 18-9 (X 3 CrNiCu 18-9-4) | Z 3 CNU 18-09 FF | — | — | ||||
| 1.4568 | X 7 CrNiAl 17-7 | Z 8 CNA 17-7 | 316 S 111 | 17-7 PH | ||||
| 1.4571 | X 6 CrNiMoTi 17-12-2 | Z 6 CNDT 17-12 | 320 S 31 | SUS 316 Ti | ||||
| 1.4573 | X 10 CrNiMoTi 18-12 | Z 6 CNDT 17-13 | 320 S 33 | — | ||||
| 1.4580 | X 6 CrNiMoNb 17-12-2 | Z 6 CNDNb 17-12 | — | — | ||||
| 1.4581 | GX 5 CrNiMoNb 19-11 (G-X 5 CrNiMoNb 18-10) | Z 4 CNDNb 18.12 M | 318 C 17 | SCS 22 | ||||
| 1.4583 | X 10 CrNiMoNb 18-12 | Z 6 CNDNb 17-13 | — | — | ||||
| 1.4713 | X 10 CrAl 7 | Z 8 CA 7 | — | — | ||||
| 1.4718 | X 45 CrSi 9-3 | Z 45 CS 9 | 401 S 45 | SUH 1 | ||||
| 1.4720 | X 7 CrTi 12 | Z 6 CT 12 | — | SUS 409 | ||||
| 1.4724 | X 10 CrAl 13 | Z 10 C 13 | 403 S 17 | SUS 405 | ||||
| 1.4731 | X 40 CrSiMo 10-2 | Z 40 CSD 10 | — | SUH 3 | ||||
| 1.4742 | X 10 CrAl 18 | Z 12 CAS 18, Z 10 CAS 18 | 430 S 17 | SUS 430 | ||||
| 1.4748 | X 85 CrMoV 18-2 | Z 85 CDV 18.02 | — | — | ||||
| 1.4762 | X 10 CrAl 24 | Z10 CAS 24 | — | SCH446 | ||||
| 1.4821 | X 20 CrNiSi 25-4 | Z 20 CNS 25.04 | — | — | ||||
| 1.4828 | X 15 CrNiSi 20-12 Z | 15 CN 23-13, Z 15 CNS 20-12 | 309 S 24 | SUS 309 S | ||||
| 1.4833 | X 7 CrNi 23-14 | Z 15 CN 23.13, Z 15 CN 24.13 | 309 S 16 | SUH 309 | ||||
| 1.4841 | X 15 CrNiSi 25-20 | Z 15 CNS 25-20, Z 12 CNS 25-20 | 310 S 24 | SUS310 | ||||
| 1.4845 | X 12 CrNi 25-21 | Z 12 CN 26.21, Z 12 CN 25.20 | 310 S 31 | SUH 310 | ||||
| 1.4864 | X 12 NiCrSi 36-16 | Z 20 NCS 33.16, Z 12 NCS 35.16 | — | SUH 330 | ||||
| 1.4871 | X 53 CrMnNiN 21-9 | Z 53 CMN 21.09 Az | 349 S 54 | SUH 35 | ||||
| 1.4873 | X 45 CrNiW 18-9 | Z 35 CNWS 14.14 | 331 S 40 | SUH 31 | ||||
| 1.4875 | X 55 CrMnNiN 20-8 | Z 55 CMN 20.08 Az | — | — | ||||
| 1.4876 | X 10 NiCrAlTi 32-20 | Z 8 NC 33.21, Z 8 NC 32.21 | — | — | ||||
| 1.487 | X 12 CrNiTi 18-9 | Z 6 CNT 18.12, Z 6 CNT 18.10 | 321 S 12, 321 S 51 | SUS 321 | ||||
| 1.4948 | X 6 CrNi 18-11 | Z 6 CN 18-09 | 304 S 51 | SUS304 | ||||
| 1.5023 | 38 Si 7 | 46 S 7 | — | — | ||||
| 1.5092 | 60 SiCr 7 | 61 SC 7 | 251 A 61 | SUP 7 | ||||
| 1.5919 | 15 CrNi 6 | 16 NC 6 | 815 M 17 | SNC 15 | ||||
| 1.5920 | 18 CrNi 8 | 20 NC 6 | 822 M17 | SNCM 616 | ||||
| 1.6511 | 36 CrNiMo 4 | 36 CrNiMo 4 | 36 CrNiMo 4, 817 A 37 | SNCM 439 | ||||
| 1.6580 | 30 CrNiMo 8 | 30 CrNiMo 8, 30 CND 8 | 30 CrNiMo 8 | SNCM 630 | ||||
| 1.6582 | 34 CrNiMo 6 | 34 CrNiMo 6 | 34 CrNiMo 6, 817 M 40 | SNCM 447 | ||||
| 1.6587 | 17 CrNiMo 6 | 18 NCD 6 | 820 M 17 | SNCM 815 | ||||
| 1.7003 | 38 Cr 2 | 38 Cr 2 38 Cr 2, 120 M 36 | SMn 438 | |||||
| 1.7003 | 46 Cr 2 | 46 Cr 2, 42 C 2 | 46 Cr 2, 605 M 36 | SMn 443 | ||||
| 1.7030 | 28 Cr 4 | 30 CD 4 | 530 A 30 | — | ||||
| 1.7033 | 34 Cr 4 | 34 Cr 4, 32 C 4 | 34 Cr 4, 530 A 32 | SCr 430 | ||||
| 1.7034 | 37 Cr 4 | 37 Cr 4, 38 C 4 | 37 Cr 4, 530 A 36 | SCr 435 | ||||
| 1.7035 | 41 Cr 4 | 41 Cr 4, 42 C 4 | 41 Cr 4, 530 M 40 | 41 Cr 4SCr 440 | ||||
| 1.7037 | 34 CrS 4 | 34 CrS 4, 32 C 4 | 34 CrS 4, 530 A 32 | — | ||||
| 1.7038 | 37 CrS 4 | 37 CrS 4, 38 C 4 | 37 CrS 4, 530 A 36 | — | ||||
| 1.7039 | 41 CrS 4 | 41 CrS 4, 42 C 4 | 41 CrS 4, 530 M 40 | — | ||||
| 1.7102 | 54 SiCr 6 | 51 S 7 | 251 A 58 | SKD12 | ||||
| 1.7131 | 16 MnCr 5 | 16 MC 5 | 527 M 17 | — | ||||
| 1.7147 | 20 MnCr 5 | 20 MC 5 | — | SMnC 420 | ||||
| 1.7176 | 55 Cr 3 | 55 C 3 | 525 A 60 | SUP 9 | ||||
| 1.7213 | 25 CrMoS 4 | 25 CrMoS 4, 25 CD 4 | 25 CrMoS 4, 708 A 25 | — | ||||
| 1.7218 | 25 CrMo 4 | 25 CrMo 4, 25 CD 4 | 25 CrMo 4, 708 A 25 | SCM 430 | ||||
| 1.7220 | 34 CrMo 4 | 34 CrMo 4, 34 CD 4 | 34 CrMo 4, 708 A 37 | SCM 435 | ||||
| 1.7225 | 42 CrMo 4 | 42 CrMo 4, 42 CD 4 | 42 CrMo 4, 708 M 40 | SCM440 | ||||
| 1.7226 | 34 CrMoS 4 | 34 CrMoS 4, 34 CD 4 | 34 CrMoS 4708 A 37 | — | ||||
| 1.7227 | 42 CrMoS 4 | 42 CrMoS 4, 42 CD 4 | 42 CrMoS 4, 708 M 40 | — | ||||
| 1.7228 | 50 CrMo 4 | 50 CrMo 4 | 50 CrMo 4, 708 A 47 | — | ||||
| 1.7321 | 20 MoCr 4 | — | 805 M 20 | SNCM 220 | ||||
| 1.7325 | 25 MoCr 4 | 18 CD 4 | — | — | ||||
| 1.7361 | 32 CrMo 12 | 30 CD 12 | 722 M 24 | — | ||||
| 1.7701 | 51 CrMoV 4 | 51 CDV 4 | — | SUP 13 | ||||
| 1.8159 | 51 CrV 4 | 51 CrV 4, 50 CV 4 | 51 CrV 4 | SUP 10 | ||||
| 1.8507 | 34 CrAlMo 5 | — | — | — | ||||
| 1.8509 | 41 CrAlMo 7 | 40 CAD 6 12 | 905 M 39 | — | ||||
| 1.8515 | 31 CrMo 12 | 30 CD 12 | 722 M 24 | — | ||||
| 1.8523 | 39 CrMoV 13-9 | — | 897 M 39 | — | ||||
| 1.8550 | 34 CrAlNi 7 | — | — | — |
