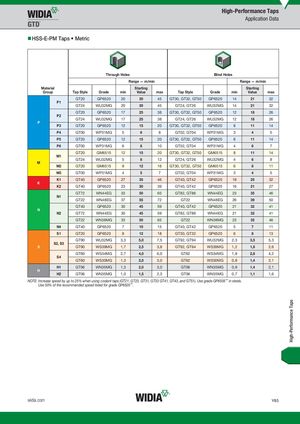

HSS-E-PM Taps • Metric
| Throu | gh Holes | Blind Ho | les | ||||||||
| R | ange — m/m | in | Range — m/m | in | |||||||
| Material | Starting | Starting | |||||||||
| Group | Tap Style | Grade | min | Value | max | Tap Style | Grade | min | Value | max | |
| P1 | GT20 | GP6520 | 20 | 30 | 45 | GT30, GT32, GT50 | GP6520 | 14 | 21 | 32 | |
| GT24 | WU32MG | 20 | 30 | 45 | GT24, GT26 | WU32MG | 14 | 21 | 32 | ||
| GT20 | GP6520 | 17 | 25 | 38 | GT30, GT32, GT50 | GP6520 | 12 | 18 | 26 | ||
| P2 | GT24 | WU32MG | 17 | 25 | 38 | GT24, GT26 | WU32MG | 12 | 18 | 26 | |
| P | P3 | GT20 | GP6520 | 12 | 15 | 20 | GT30, GT32, GT50 | GP6520 | 8 | 11 | 14 |
| P4 | GT00 | WP31MG | 5 | 6 | 8 | GT02, GT04 | WP31MG | 3 | 4 | 5 | |
| P5 | GT20 | GP6520 | 12 | 15 | 20 | GT30, GT32, GT50 | GP6520 | 8 | 11 | 14 | |
| P6 | GT00 | WP31MG | 6 | 8 | 10 | GT02, GT04 | WP31MG | 4 | 6 | 7 | |
| M1 | GT20 | GM6515 | 12 | 15 | 20 | GT30, GT32, GT50 | GM6515 | 8 | 11 | 14 | |
| GT24 | WU32MG | 5 | 8 | 12 | GT24, GT26 | WU32MG | 4 | 6 | 8 | ||
| M | M2 | GT20 | GM6515 | 9 | 12 | 16 | GT30, GT32, GT50 | GM6515 | 6 | 8 | 11 |
| M3 | GT00 | WP31MG | 4 | 5 | 7 | GT02, GT04 | WP31MG | 3 | 4 | 5 | |
| K1 | GT40 | GP6520 | 27 | 35 | 46 | GT40, GT42 | GP6520 | 19 | 25 | 32 | |
| K | K2 | GT40 | GP6520 | 23 | 30 | 39 | GT40, GT42 | GP6520 | 16 | 21 | 27 |
| N | GT72 | WN44EG | 33 | 50 | 65 | GT82, GT86 | WN44EG | 23 | 35 | 46 | |
| 1 | GT22 | WN48EG | 37 | 55 | 72 | GT22 | WN48EG | 26 | 39 | 50 | |
| GT40 | GP6520 | 30 | 45 | 59 | GT40, GT42 | GP6520 | 21 | 32 | 41 | ||
| N | N2 | GT72 | WN44EG | 30 | 45 | 59 | GT82, GT86 | WN44EG | 21 | 32 | 41 |
| GT22 | WN38MG | 33 | 50 | 65 | GT22 | WN38MG | 23 | 35 | 46 | ||
| N4 | GT40 | GP6520 | 7 | 10 | 15 | GT40, GT42 | GP6520 | 5 | 7 | 11 | |
| S1 | GT20 | GP6520 | 8 | 12 | 18 | GT30, GT32 | GP6520 | 6 | 8 | 13 | |
| GT90 | WU32MG | 3,3 | 5,0 | 7,5 | GT92, GT94 | WU32MG | 2,3 | 3,5 | 5,3 | ||
| S S | 2, S3 | GT90 | WS39MG | 1,7 | 2,5 | 3,8 | GT92, GT94 | WS39MG | 1,2 | 1,8 | 2,6 |
| GT60 | WS34MG | 2,7 | 4,0 | 6,0 | GT62 | WS34MG | 1,9 | 2,8 | 4,2 | ||
| S4 | GT60 | WS30MG | 1,3 | 2,0 | 3,0 | GT62 | WS30MG | 0,9 | 1,4 | 2,1 | |
| H | H1 | GT06 | WN35MG | 1,3 | 2,0 | 3,0 | GT06 | WN35MG | 0,9 | 1,4 | 2,1 |
| H2 | GT06 | WN35MG | 1,0 | 1,5 | 2,3 | GT06 | WN35MG | 0,7 | 1,1 | 1,6 |
