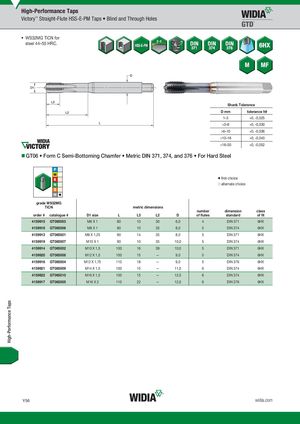

Victory™ Straight-Flute HSS-E-PM Taps Blind and Through Holes
- WS32MG TiCN for steel 44–55 HRC.
| Shank Tolerance |
| D mm tolerance h9 |
| 1–3 +0, -0,025 |
| >3–6 +0, -0,030 |
| >6–10 +0, -0,036 |
| >10–18 +0, -0,043 |
| >18–30 +0, -0,052 |
GT06 Form C Semi-Bottoming Chamfer Metric DIN 371, 374, and 376 For Hard Steel
first choice alternate choice
grade WS32MGWS32MG
| WS32MG grade WS32MG TiCN order # catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes | dimension standard | class of fit |
| 4159915 GT065003 | M6 X 1 | 80 | 10 | 30 | 6,0 | 4 | DIN 371 | 6HX |
| 4159918 GT065006 | M8 X 1 | 90 | 10 | 35 | 8,0 | 5 | DIN 374 | 6HX |
| 4159913 GT065001 | M8 X 1,25 | 90 | 14 | 35 | 8,0 | 5 | DIN 371 | 6HX |
| 4159919 GT065007 | M10 X 1 | 90 | 10 | 35 | 10,0 | 5 | DIN 374 | 6HX |
| 4159914 GT065002 | M10 X 1,5 | 100 | 16 | 39 | 10,0 | 5 | DIN 371 | 6HX |
| 4159920 GT065008 | M12 X 1,5 | 100 | 15 | — | 9,0 | 5 | DIN 374 | 6HX |
| 4159916 GT065004 | M12 X 1,75 | 110 | 18 | — | 9,0 | 5 | DIN 376 | 6HX |
| 4159921 GT065009 | M14 X 1,5 | 100 | 15 | — | 11,0 | 6 | DIN 374 | 6HX |
| 4159922 GT065010 | M16 X 1,5 | 100 | 15 | — | 12,0 | 6 | DIN 374 | 6HX |
| 4159917 GT065005 | M16 X 2 | 110 | 22 | — | 12,0 | 6 | DIN 376 | 6HX |
