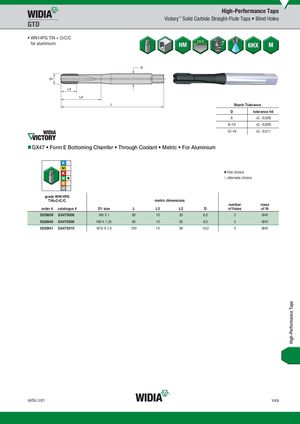

- WN14PG TiN + CrC/C for aluminium.
Shank Tolerance
| D | tolerance h6 |
| 6 | +0, -0,008 |
| 8–10 | +0, -0,009 |
| 12–16 | +0, -0,011 |
GX47 Form E Bottoming Chamfer Through Coolant Metric For Aluminium
first choice
| WN14PG grade WN14PG TiN+CrC/C order # catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes �first choice �alternate choic | class of fit e |
| 5520839 GX475006 | M6 X 1 | 80 | 10 | 30 | 6,0 | 3 | 6HX |
| 5520840 GX475008 | M8 X 1,25 | 90 | 10 | 35 | 8,0 | 3 | 6HX |
| 5520841 GX475010 | M10 X 1,5 | 100 | 15 | 39 | 10,0 | 3 | 6HX |
